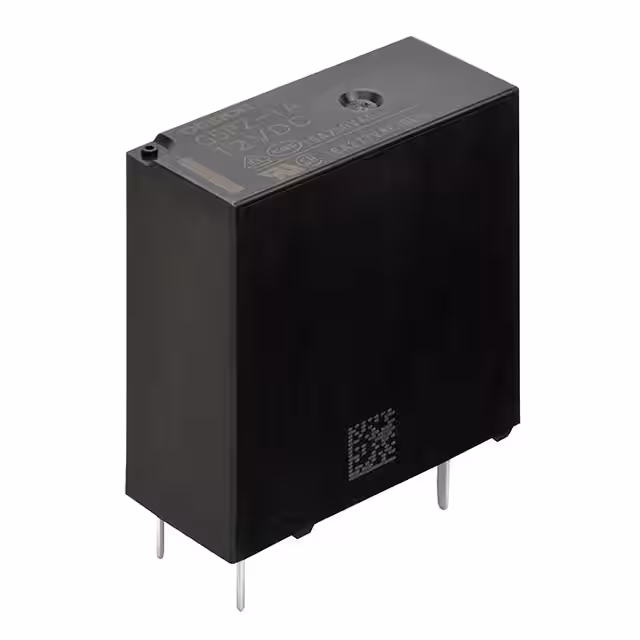

G5PZ-1A-E DC24
Or copy the link below:
- Mfr.Part #
- G5PZ-1A-E DC24
- Manufacturer
- Omron Electronic Components
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE SPST 20A 24V
- Stock
- 4,448
- In Stock ：
- 4,448
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Omron Electronic Components
- Product Category :
- Power Relays, Over 2 Amps
- Contact Configuration :
- SPST
- Coil Current :
- 22.1 mA
- Content :
- 1pc(s)
- Manufacturer :
- Omron
- Series :
- G5PZ
- Must Release Voltage :
- 2.4 VDC
- Mounting Type :
- Through Hole
- Seal Rating :
- Sealed - Flux Protection
- Features :
- -
- Switching current (max.) :
- 20A
- Contact Current :
- 20A
- Contact Material :
- Silver Alloy, Cadmium Free
- Product Category :
- General Purpose Relays
- Mounting Style :
- Through Hole
- Number of Poles :
- 1
- Product Type :
- General Purpose Relays
- Relay Type :
- GENERAL PURPOSE
- Subcategory :
- Relays
- Release Time :
- 5 ms
- Number of Coils :
- Single
- Brand :
- Omron Electronics
- Operate Time :
- 15 ms
- Product Status :
- Active
- Width :
- 10.3 mm
- Type :
- G5PZ-1A-E-DC24
- Coil Type :
- Non Latching
- Switching voltage (max.) :
- 250V AC
- Switching Current :
- 20A
- Coil nominal voltage :
- 24V dc
- Packaging :
- Tray
- Length :
- 23.8 mm
- Switching Voltage :
- 250VAC - Max
- Coil Insulation :
- -
- Connection :
- Coil Termination :
- Solder Pin
- Package :
- Tray
- Power Consumption :
- 530 mW
- RoHS :
- Details
- Base Product Number :
- G5PZ
- Termination Style :
- PC Pin
- Must Operate Voltage :
- 18 VDC
- Coil Resistance :
- 1.087 kOhms
- Coil Power :
- 530mW
- Packaging type :
- Tray
- Product :
- Power Relays
- Coil Voltage :
- 24VDC
- Contact Current Rating :
- 20 A
- Operating Temperature :
- -40°C ~ 70°C
- Height :
- 24.9 mm
- Contact Form :
- SPST-NO (1 Form A)
- Compliance :
- CSA, CQC, EN/IEC, TUV, UL, VDE
- Contact Rating (Current) :
- 20 A
- Contact Termination :
- Solder Pin
- Datasheets
- G5PZ-1A-E DC24
