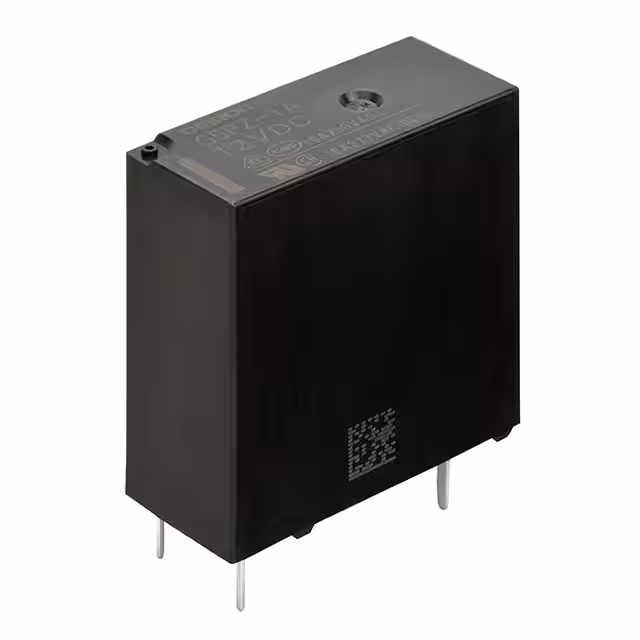

G5PZ-1A-E DC5
Or copy the link below:
- Mfr.Part #
- G5PZ-1A-E DC5
- Manufacturer
- Omron Electronic Components
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE SPST 20A 5V
- Stock
- 562
- In Stock ：
- 562
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Omron Electronic Components
- Product Category :
- Power Relays, Over 2 Amps
- Contact Material :
- Silver Alloy, Cadmium Free
- Operate Time :
- 15 ms
- Switching current (max.) :
- 20A
- Termination Style :
- PC Pin
- Coil Termination :
- Solder Pin
- Compliance :
- CSA, CQC, EN/IEC, TUV, UL, VDE
- Brand :
- Omron Electronics
- Relay Type :
- GENERAL PURPOSE
- Height :
- 24.9 mm
- Coil nominal voltage :
- 5V dc
- Operating Temperature :
- -40°C ~ 70°C
- Coil Voltage :
- 5VDC
- RoHS :
- Details
- Number of Poles :
- 1
- Coil Insulation :
- -
- Connection :
- Switching voltage (max.) :
- 250V AC
- Length :
- 23.8 mm
- Release Time :
- 5 ms
- Contact Current Rating :
- 20 A
- Width :
- 10.3 mm
- Switching Current :
- 20A
- Product Type :
- General Purpose Relays
- Coil Current :
- 106 mA
- Subcategory :
- Relays
- Contact Rating (Current) :
- 20 A
- Coil Power :
- 530mW
- Power Consumption :
- 530 mW
- Must Operate Voltage :
- 3.8 VDC
- Packaging type :
- Tray
- Package :
- Tray
- Series :
- G5PZ
- Mounting Type :
- Through Hole
- Product Category :
- General Purpose Relays
- Contact Form :
- SPST-NO (1 Form A)
- Coil Resistance :
- 47 Ohms
- Seal Rating :
- Sealed - Flux Protection
- Type :
- G5PZ-1A-E-DC5
- Switching Voltage :
- 250VAC - Max
- Coil Type :
- Non Latching
- Contact Configuration :
- SPST
- Features :
- -
- Manufacturer :
- Omron
- Content :
- 1pc(s)
- Mounting Style :
- Through Hole
- Product :
- Power Relays
- Base Product Number :
- G5PZ
- Must Release Voltage :
- 0.5 VDC
- Product Status :
- Active
- Packaging :
- Tray
- Contact Termination :
- Solder Pin
- Number of Coils :
- Single
- Contact Current :
- 20A
- Datasheets
- G5PZ-1A-E DC5
G5PZ-1A-E DC5 datasheet pdf and Power Relays, Over 2 Amps product details from Omron Electronics Inc-EMC Div stock available at
