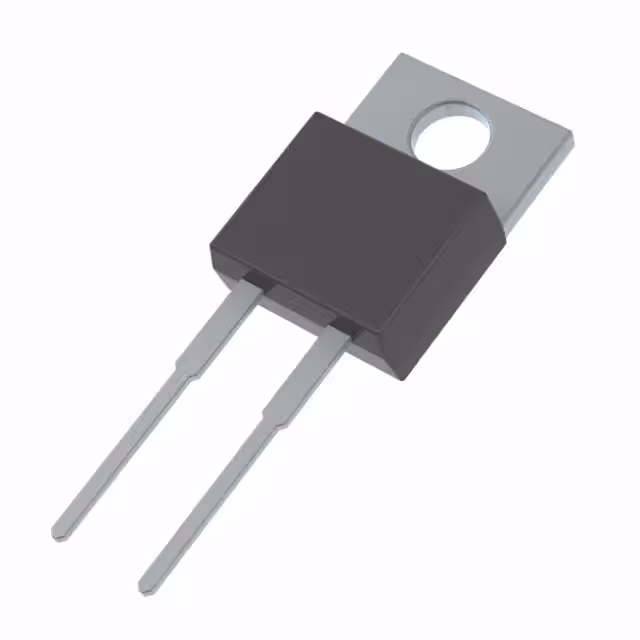

GPA802-BP

Manufacturer :

Micro Commercial Components (MCC)

Product Category :

Diodes - Rectifiers - Single

ECCN Code :

EAR99

Diode Type :

Standard

Number of Phases :

1

Terminal Position :

Single

Application :

GENERAL PURPOSE

Voltage - Forward (Vf) (Max) @ If :

1.1V @ 8A

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Mounting Type :

Through Hole

Capacitance @ Vr, F :

50pF @ 4V 1MHz

JESD-30 Code :

R-PSFM-T2

Non-rep Pk Forward Current-Max :

150A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - DC Reverse (Vr) (Max) :

100V

JESD-609 Code :

e3

Package / Case :

TO-220-2 Full Pack

Pin Count :

3

Pbfree Code :

yes

Speed :

Standard Recovery >500ns, > 200mA (Io)

Surface Mount :

No

Rep Pk Reverse Voltage-Max :

100V

RoHS Status :

RoHS Compliant

Qualification Status :

Not Qualified

JEDEC-95 Code :

TO-220AC

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Configuration :

Single

Reach Compliance Code :

Compliant

Case Connection :

CATHODE

Number of Terminations :

2

Additional Feature :

High Reliability

HTS Code :

8541.10.00.80

Current - Reverse Leakage @ Vr :

5µA @ 100V

Terminal Finish :

Matte Tin (Sn)

Operating Temperature - Junction :

-65°C~150°C

Output Current-Max :

8A

Current - Average Rectified (Io) :

8A

Diode Element Material :

SILICON

Number of Elements :

1
