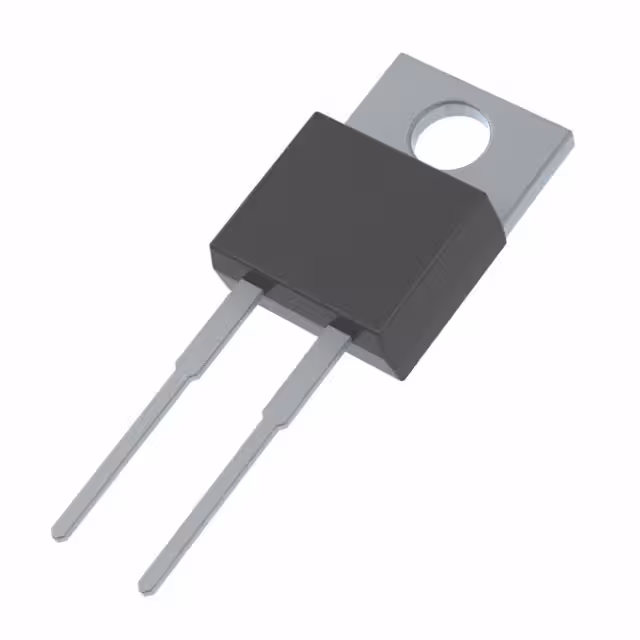

GPA804-BP

Manufacturer :

Micro Commercial Components (MCC)

Product Category :

Diodes - Rectifiers - Single

Pin Count :

3

Case Connection :

CATHODE

Speed :

Standard Recovery >500ns, > 200mA (Io)

Capacitance @ Vr, F :

50pF @ 4V 1MHz

Package / Case :

TO-220-2 Full Pack

Diode Type :

Standard

Operating Temperature - Junction :

-65°C~150°C

JESD-30 Code :

R-PSFM-T2

ECCN Code :

EAR99

Reach Compliance Code :

Compliant

Non-rep Pk Forward Current-Max :

150A

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Terminal Position :

Single

Application :

GENERAL PURPOSE

Rep Pk Reverse Voltage-Max :

400V

Additional Feature :

High Reliability

Voltage - Forward (Vf) (Max) @ If :

1.1V @ 8A

Qualification Status :

Not Qualified

Surface Mount :

No

Number of Phases :

1

Current - Reverse Leakage @ Vr :

5µA @ 400V

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Number of Terminations :

2

Mounting Type :

Through Hole

JESD-609 Code :

e3

Configuration :

Single

Diode Element Material :

SILICON

Number of Elements :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

RoHS Compliant

Current - Average Rectified (Io) :

8A

Voltage - DC Reverse (Vr) (Max) :

400V

Output Current-Max :

8A

Terminal Finish :

Matte Tin (Sn)

Pbfree Code :

yes

JEDEC-95 Code :

TO-220AC

HTS Code :

8541.10.00.80
