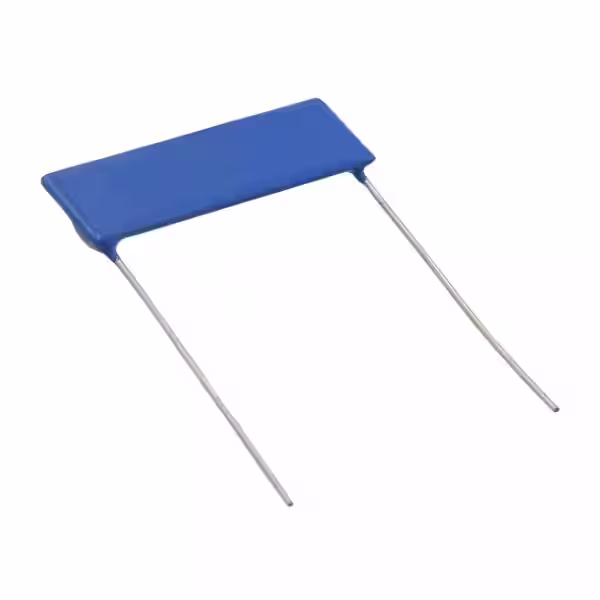

HB11G0FZRE

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Package Height :

10.4 mm

Terminal Shape :

Wire

Rated Power Dissipation (P) :

2 W

Subcategory :

FIXED RESISTOR

Product Status :

Active

Military Standard :

Not Required

Termination Style :

Radial

ECCN Code :

EAR99

Operating Temperature :

-55°C ~ 125°C

Resistor Type :

High Voltage

Features :

High Voltage, Pulse Withstanding

Reach Compliance Code :

Compliant

Supplier Device Package :

Radial Lead

Product Diameter (mm) :

Not Required(mm)

Working Voltage :

7500 V

Package :

Bulk

RoHS :

Non-Compliant

Package Width :

3 mm

Package Type :

SMD

Surface Mount :

No

Power Rating(s) :

2(W)

Series :

HB, CGS

Mounting Feature :

THROUGH HOLE MOUNT

Manufacturer :

TE Connectivity

Additional Feature :

RATED AC VOLTAGE : 7500

Case Style :

Epoxy

Product Height (mm) :

10.4(mm)

Lead Length :

25.4 mm

Product Length (mm) :

26.5(mm)

Resistance Tolerance :

± 1%

JESD-609 Code :

e3

Number of Terminations :

2

Construction :

Planar

Size / Dimension :

1.043 L x 0.118 W (26.50mm x 3.00mm)

Lead Spacing :

22.9 mm

Power (Watts) :

2W

Product Depth (mm) :

3(mm)

Resistance :

1000000000(ohm)

Technology :

Thick Film

Tolerance (+ or -) :

1%

Factory Lead Time :

29 Weeks, 6 Days

Type :

Thick Film

Lead Diameter :

0.6 mm

Product Length :

26.5mm

Temperature Coefficient :

±100(ppm/°C)

Lead Spacing (nom) :

22.9(mm)

Flame-Proof Support :

No

Composition :

Thick Film

Package / Case :

1210

Maximum Operating Temperature :

+125°C

Number of Terminals :

2

Operating Temp Range :

-55C to 125C

Terminal Finish :

Tin (Sn)

Qualification :

-

Package Shape :

RECTANGULAR PACKAGE

Packaging :

LOOSE/TRAY

Product Width :

-

Pbfree Code :

yes

Voltage Rating :

7.5kV

Power Rating :

2W

Package Length :

26.5 mm

Tolerance :

±1%

Minimum Operating Temperature :

-55°C

Height - Seated (Max) :

0.409 (10.40mm)

Packing Method :

Tray

Rated Temperature :

70 °C

Failure Rate :

Not Required

Temperature Range @ Derated Power :

20 TO 120
