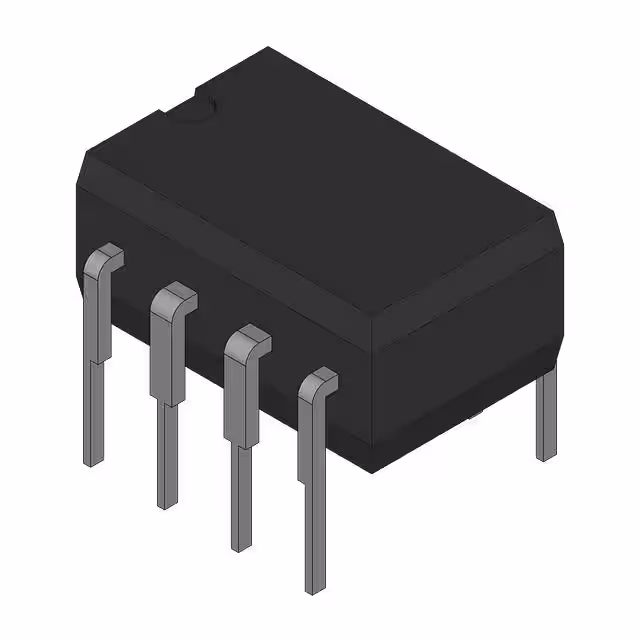

HFA3-0002-9

Manufacturer :

Harris Corporation

Product Category :

Instrumentation, OP Amps, Buffer Amps

Voltage - Input Offset :

600 µV

Current - Input Bias :

230 nA

Reach Compliance Code :

Unknown

Temperature Grade :

Industrial

Terminal Form :

THROUGH-HOLE

Output Type :

-

Current - Supply :

14mA

Neg Supply Voltage-Nom (Vsup) :

-5 V

Unity Gain BW-Nom :

1000000 kHz

Pin Count :

8

Operating Temperature :

-40°C ~ 85°C (TA)

Terminal Position :

Dual

Mounting Type :

Through Hole

Supplier Device Package :

8-PDIP

Average Bias Current-Max (IIB) :

1 µA

Package :

Bulk

Number of Functions :

1

Manufacturer :

Rochester Electronics LLC

Terminal Finish :

TIN LEAD

Subcategory :

Operational Amplifier

RoHS :

Non-Compliant

Gain Bandwidth Product :

1 GHz

Number of Circuits :

1

JESD-609 Code :

e0

Pbfree Code :

No

Number of Terminals :

8

Current - Output / Channel :

12 mA

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Slew Rate :

250V/µs

Surface Mount :

No

Amplifier Type :

GENERAL PURPOSE

Package / Case :

8-DIP (0.300, 7.62mm)

Technology :

Bipolar

Package Shape :

RECTANGULAR

Input Offset Voltage-Max :

1000 µV

Series :

-

Supply Voltage Limit-Max :

6 V

Product Status :

Active

JESD-30 Code :

R-PDIP-T8
