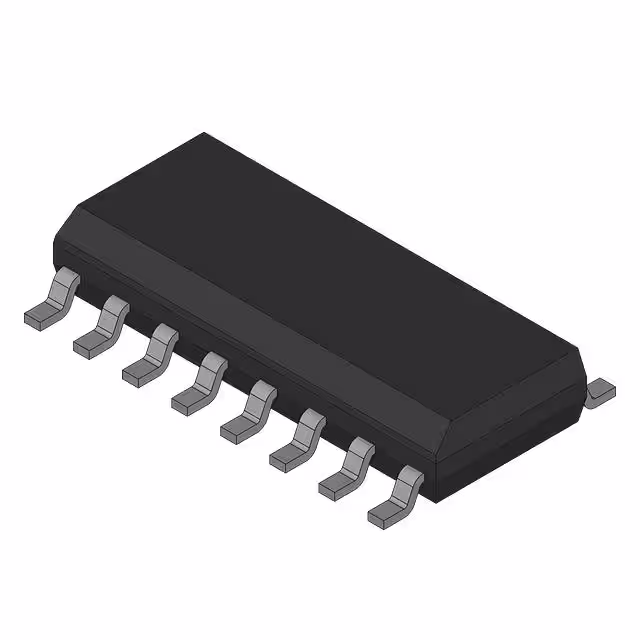

HI5760BIBZ-T

Manufacturer :

Intersil

Product Category :

Digital to Analog Converters (DAC)

Packaging :

Tape and Reel (TR)

Mounting Type :

Surface Mount

Terminal Form :

Gull wing

Converter Type :

D/A CONVERTER

Terminal Position :

Dual

Number of Bits :

10

INL/DNL (LSB) :

±0.5, ±0.25

Differential Output :

yes

Analog Output Voltage-Min :

-0.3V

Height Seated (Max) :

2.65mm

Voltage - Supply, Digital :

2.7V~5.5V

Output Type :

Current - Unbuffered

Number of Terminations :

28

Reference Type :

External, Internal

Number of D/A Converters :

1

Factory Lead Time :

7 Weeks

Pin Count :

28

Settling Time :

35ns (Typ)

Package / Case :

28-SOIC (0.295, 7.50mm Width)

Base Part Number :

HI5760

Voltage - Supply, Analog :

2.7V~5.5V

Width :

7.5mm

Linearity Error-Max (EL) :

0.09765625%

Architecture :

Current Source

RoHS Status :

ROHS3 Compliant

Number of Functions :

1

Input Bit Code :

BINARY

Operating Temperature :

-40°C~85°C

Terminal Finish :

MATTE TIN

JESD-609 Code :

e3

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Surface Mount :

yes

Supply Voltage :

5V

Data Interface :

Parallel

Supply Current-Max :

30mA

JESD-30 Code :

R-PDSO-G28
