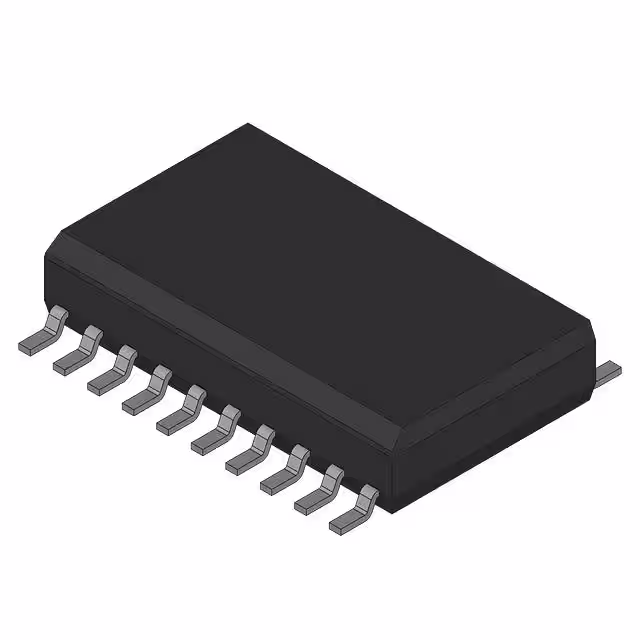

HIN200CB

Manufacturer :

Harris Corporation

Product Category :

Drivers, Receivers, Transceivers

Surface Mount :

yes

Width :

7.5mm

ECCN Code :

EAR99

Input Characteristics :

Standard

Terminal Position :

Dual

Supply Voltage-Max (Vsup) :

5.25V

Length :

12.8mm

Terminal Pitch :

1.27mm

Differential Output :

No

Out Swing-Min :

5 V

Supply Voltage-Min (Vsup) :

4.75V

Reach Compliance Code :

not_compliant

Interface Standard :

V.28; EIA-232-E

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

HTS Code :

8542.39.00.01

JESD-30 Code :

R-PDSO-G20

Number of Terminals :

20

Power Supplies :

5V

Transmit Delay-Max :

10000 ns

Number of Functions :

1

Temperature Grade :

COMMERCIAL

Terminal Form :

Gull wing

Terminal Finish :

Tin/Lead (Sn/Pb)

Operating Temperature (Max) :

70°C

JESD-609 Code :

e0

Supply Voltage :

5V

Driver Number of Bits :

5

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Qualification Status :

Not Qualified

Seated Height-Max :

2.65mm

RoHS Status :

Non-RoHS Compliant

Pin Count :

20

Interface IC Type :

LINE DRIVER
