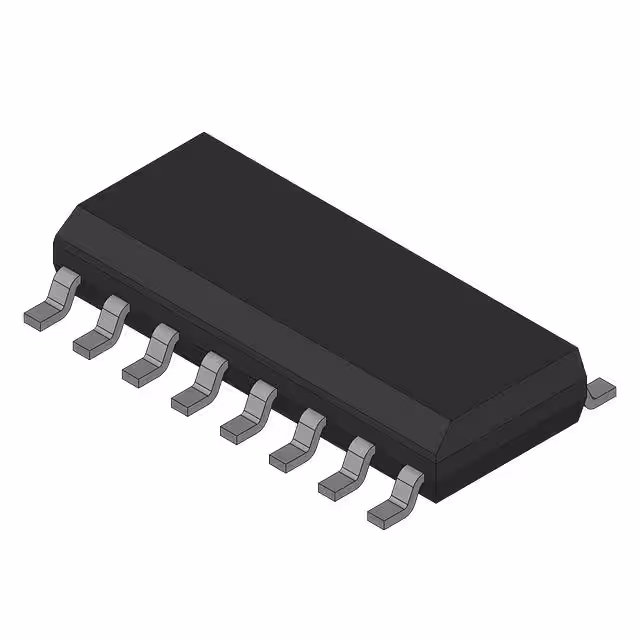

HIN201CB-T

Manufacturer :

Harris Corporation

Product Category :

Drivers, Receivers, Transceivers

HTS Code :

8542.39.00.01

Terminal Finish :

TIN LEAD

Pbfree Code :

No

Additional Feature :

EXTERNAL CHARGE PUMP

Interface IC Type :

LINE TRANSCEIVER

Qualification Status :

Not Qualified

Terminal Pitch :

1.27 mm

Differential Output :

No

JESD-609 Code :

e0

Receiver Number of Bits :

2

Package Shape :

RECTANGULAR

Terminal Position :

Dual

Pin Count :

16

JESD-30 Code :

R-PDSO-G16

Power Supplies :

5,12 V

Temperature Grade :

COMMERCIAL

Number of Terminals :

16

Input Characteristics :

Schmitt Trigger

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Driver Number of Bits :

2

Subcategory :

Line Driver or Receivers

Supply Voltage1-Max :

12 V

Supply Voltage1-Min :

7.5 V

Output Low Current-Max :

0.0016 A

Receive Delay-Max :

10000 ns

Transmit Delay-Max :

10000 ns

Number of Functions :

1

Interface Standard :

EIA-232-E; V.28

ECCN Code :

EAR99

Surface Mount :

yes

Supply Voltage1-Nom :

12 V

Manufacturer :

Rochester Electronics LLC

Terminal Form :

Gull wing

Reach Compliance Code :

Unknown

Technology :

CMOS

Out Swing-Min :

5 V
