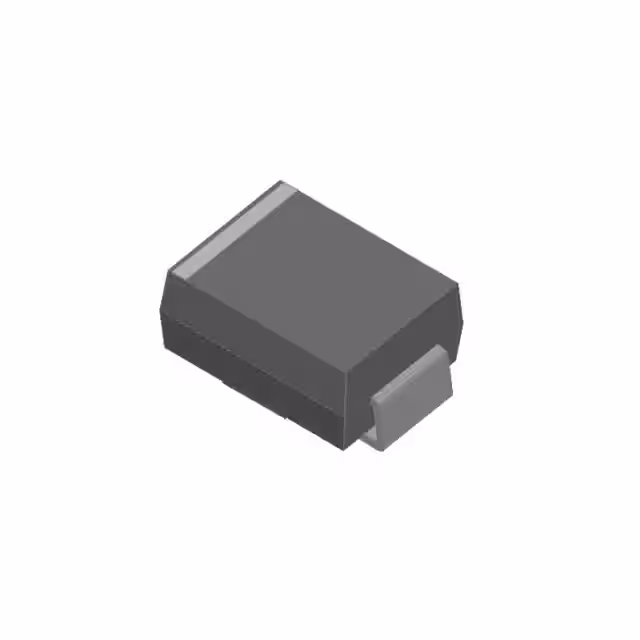

HS3K

Manufacturer :

YANGJIE

Product Category :

Diodes - Rectifiers - Single

Forward Voltage-Max :

1.7V

Product Status :

Active

RoHS Status :

RoHS Compliant

Number of Elements :

1

Voltage - DC Reverse (Vr) (Max) :

800 V

Output Current-Max :

3A

Current - Average Rectified (Io) :

3A

Reverse Recovery Time (trr) :

75 ns

Voltage - Forward (Vf) (Max) @ If :

1.7 V @ 3 A

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Supplier Device Package :

DO-214AB (SMC)

Operating Temperature - Junction :

-55°C ~ 150°C

Package / Case :

DO-214AB, SMC

Diode Type :

RECTIFIER DIODE

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Rep Pk Reverse Voltage-Max :

800V

Mounting Type :

Surface Mount

Operating Temperature (Max) :

150°C

Current - Reverse Leakage @ Vr :

5 μA @ 800 V

Surface Mount :

yes

Capacitance @ Vr, F :

30pF @ 4V, 1MHz

Configuration :

Single

Reverse Recovery Time-Max :

0.075μs

Series :

-

Non-rep Pk Forward Current-Max :

150A
