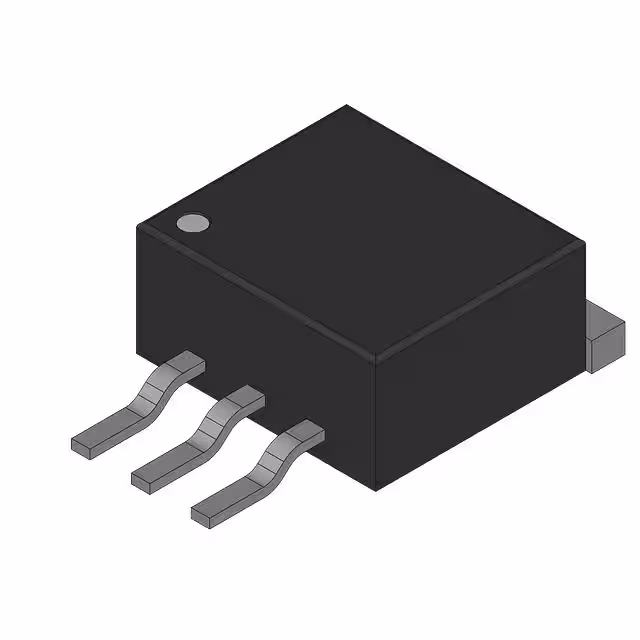

HUF76129D3S

Manufacturer :

Fairchild Semiconductor

Product Category :

Transistors - FETs, MOSFETs - Single

Power Dissipation (Max) :

105W (Tc)

Package / Case :

TO-252-3, DPak (2 Leads + Tab), SC-63

Vgs(th) (Max) @ Id :

3V @ 250µA

Drive Voltage (Max Rds On, Min Rds On) :

4.5V, 10V

Input Capacitance (Ciss) (Max) @ Vds :

1425 pF @ 25 V

Rds On (Max) @ Id, Vgs :

16mOhm @ 20A, 10V

Package :

Bulk

Technology :

MOSFET (Metal Oxide)

Gate Charge (Qg) (Max) @ Vgs :

46 nC @ 10 V

Product Status :

Active

FET Type :

N-Channel

Operating Temperature :

-55°C ~ 150°C (TJ)

Mounting Type :

Surface Mount

Supplier Device Package :

TO-252-3 (DPAK)

Series :

UltraFET™

Vgs (Max) :

±20V

Current - Continuous Drain (Id) @ 25°C :

20A (Tc)

Drain to Source Voltage (Vdss) :

30 V

FET Feature :

-
