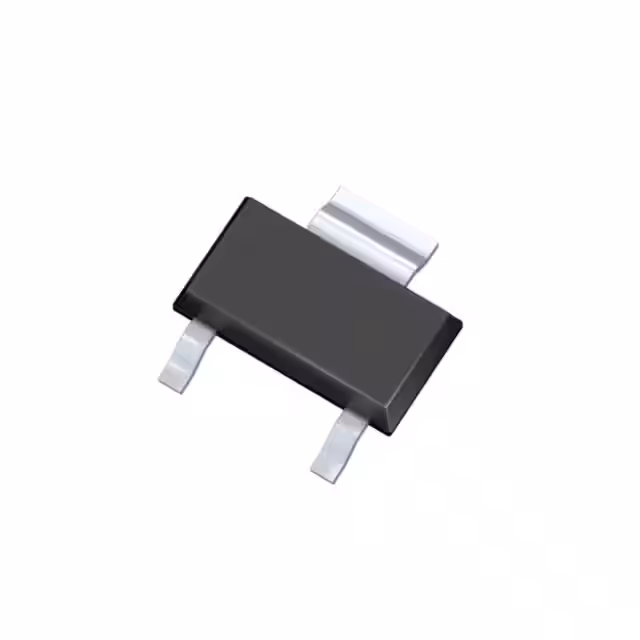

ISP25DP06LMSATMA1
Or copy the link below:
- Mfr.Part #
- ISP25DP06LMSATMA1
- Manufacturer
- Infineon Technologies
- Package / Case
- TO-261-3
- Datasheet
- Download
- Description
- MOSFET P-CH 60V 1.9A SOT223
- Stock
- 18,470
- In Stock ：
- 18,470
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Infineon Technologies
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Drain to Source Voltage (Vdss) :
- 60V
- Drive Voltage (Max Rds On,Min Rds On) :
- 4.5V 10V
- Gate Charge (Qg) (Max) @ Vgs :
- 13.9nC @ 10V
- Mounting Type :
- Surface Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Input Capacitance (Ciss) (Max) @ Vds :
- 420pF @ 30V
- Vgs(th) (Max) @ Id :
- 2V @ 270µA
- Package / Case :
- TO-261-3
- Power Dissipation-Max :
- 1.8W Ta 5W Tc
- FET Type :
- P-Channel
- Vgs (Max) :
- ±20V
- Packaging :
- Tape and Reel (TR)
- Current - Continuous Drain (Id) @ 25°C :
- 1.9A Ta
- RoHS Status :
- ROHS3 Compliant
- Series :
- OptiMOS™
- Rds On (Max) @ Id, Vgs :
- 250m Ω @ 1.9A, 10V
- Operating Temperature :
- -55°C~150°C TJ
- Datasheets
- ISP25DP06LMSATMA1
P-Channel Tape & Reel (TR) 250m Ω @ 1.9A, 10V ±20V 420pF @ 30V 13.9nC @ 10V 60V TO-261-3
ISP25DP06LMSATMA1 Overview
Op amps with either input grounded have a fixed input capacitance parameter, CI, and this device has a 420pF @ 30V maximal input capacitance.To operate this transistor, you will need a 60V drain to source voltage (Vdss).A device like this reduces its overall power consumption when it uses drive voltage (4.5V 10V).
ISP25DP06LMSATMA1 Features
a 60V drain to source voltage (Vdss)
ISP25DP06LMSATMA1 Applications
There are a lot of Infineon Technologies
ISP25DP06LMSATMA1 applications of single MOSFETs transistors.
- Synchronous Rectification for ATX 1 Server I Telecom PSU
- Motor drives and Uninterruptible Power Supplies
- Micro Solar Inverter
- DC/DC converters
- Power Tools
- Motor Drives and Uninterruptible Power Supples
- Synchronous Rectification
- Battery Protection Circuit
- Telecom 1 Sever Power Supplies
- Industrial Power Supplies
