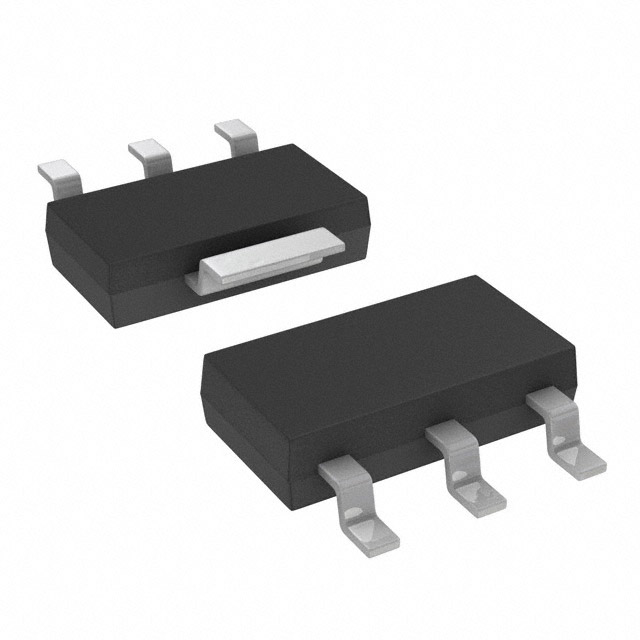

ISP25DP06NMXTSA1
Or copy the link below:
- Mfr.Part #
- ISP25DP06NMXTSA1
- Manufacturer
- Infineon Technologies
- Package / Case
- TO-261-4, TO-261AA
- Datasheet
- Download
- Description
- MOSFET P-CH 60V 1.9A SOT223-4
- Stock
- 3,973
- In Stock ：
- 3,973
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Infineon Technologies
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Current - Continuous Drain (Id) @ 25°C :
- 1.9A Ta
- Factory Lead Time :
- 10 Weeks
- Package / Case :
- TO-261-4, TO-261AA
- RoHS Status :
- ROHS3 Compliant
- Drive Voltage (Max Rds On,Min Rds On) :
- 10V
- Rds On (Max) @ Id, Vgs :
- 250m Ω @ 1.9A, 10V
- Series :
- OptiMOS™
- Drain to Source Voltage (Vdss) :
- 60V
- FET Type :
- P-Channel
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Power Dissipation-Max :
- 1.8W Ta 4.2W Tc
- Operating Temperature :
- -55°C~150°C TJ
- Vgs (Max) :
- ±20V
- Mounting Type :
- Surface Mount
- Packaging :
- Tape and Reel (TR)
- Vgs(th) (Max) @ Id :
- 4V @ 270μA
- Input Capacitance (Ciss) (Max) @ Vds :
- 420pF @ 30V
- Gate Charge (Qg) (Max) @ Vgs :
- 10.8nC @ 10V
- Datasheets
- ISP25DP06NMXTSA1
P-Channel Tape & Reel (TR) 250m Ω @ 1.9A, 10V ±20V 420pF @ 30V 10.8nC @ 10V 60V TO-261-4, TO-261AA
ISP25DP06NMXTSA1 Overview
A device's maximal input capacitance is 420pF @ 30V, which is defined as the capacitance between its input terminals with either input grounded.This transistor requires a 60V drain to source voltage (Vdss).This device reduces its overall power consumption by using drive voltage (10V).
ISP25DP06NMXTSA1 Features
a 60V drain to source voltage (Vdss)
ISP25DP06NMXTSA1 Applications
There are a lot of Infineon Technologies
ISP25DP06NMXTSA1 applications of single MOSFETs transistors.
- Consumer Appliances
- Lighting
- Uninterruptible Power Supply
- AC-DC Power Supply
- Synchronous Rectification for ATX 1 Server I Telecom PSU
- Motor drives and Uninterruptible Power Supplies
- Micro Solar Inverter
- DC/DC converters
- Power Tools
- Motor Drives and Uninterruptible Power Supples
