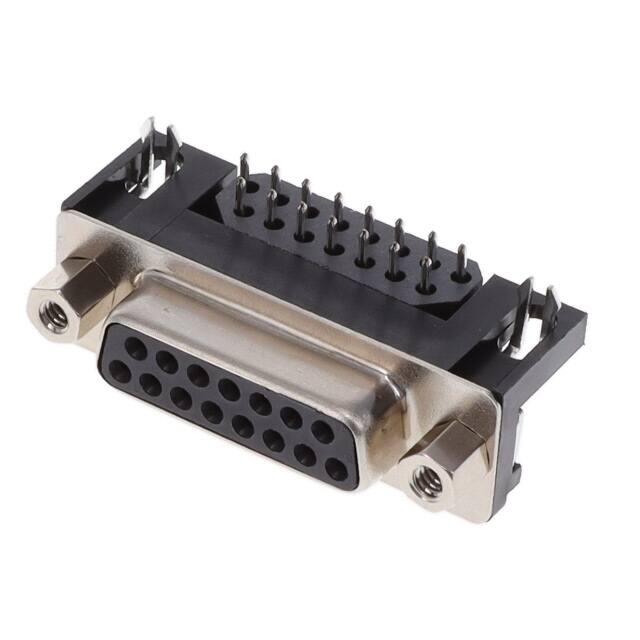

KF22X-A15S-NJ

Manufacturer :

Kycon

Product Category :

D-Sub Connector Assemblies

Number Of PCB Rows :

2

Dielectric Withstanding Voltage :

1000VAC V

Contact Finish Thickness :

Flash

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

HTS Code :

8536.69.40.30

Contact Resistance :

13mOhm

Reference Standard :

UL

Number of Positions :

15

Shell Material, Finish :

Steel, Nickel Plated

Shell Finish :

Tin

Shell Material :

Steel

Dielectric Material :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Material :

Phosphor Bronze

Factory Lead Time :

20 Weeks

MIL Conformance :

No

Voltage - Rated :

30V

Option :

GENERAL PURPOSE

Filter Feature :

No

Mounting Option 2 :

JACKSCREW

Rated Current (Signal) :

2A

Contact Form :

Stamped

Connector Style :

D-Sub

Packaging :

Tray

Body Length or Diameter :

1.541 inch

Feature :

Board Lock

PCB Contact Pattern :

STAGGERED

ECCN Code :

EAR99

Gender :

FEMALE

Number of Rows :

2

Shell Size, Connector Layout :

2 DA A

Body Depth :

0.488 inch

Mounting Type :

Through Hole, Right Angle

Color :

Black

Connector Type :

Receptacle, Female Sockets

Operating Temperature :

-55°C~105°C

Termination :

Solder

Series :

KF22X

Contact Finish :

Gold

Empty Shell :

No

Insulation Material :

PBT

Contact Type :

Signal

Current Rating :

2A

Reliability :

COMMERCIAL

IEC Conformance :

No

Material Flammability Rating :

UL94 V-0

Backset Spacing :

0.318 (8.08mm)

RoHS Status :

RoHS Compliant

Mixed Contacts :

No

Pitch :

2.77mm

Body Breadth :

0.494 inch

Plating :

Tin

Total Number of Contacts :

15

Flange Feature :

Mating Side, Female Screwlock (4-40)

DIN Conformance :

No

Insulation Resistance :

1000000000Ohm
