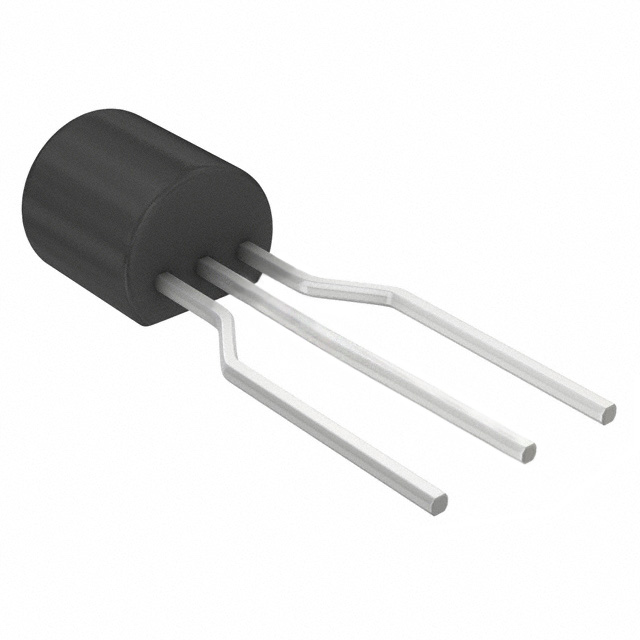

KSD471A-O-AP
Or copy the link below:
- Mfr.Part #
- KSD471A-O-AP
- Manufacturer
- Micro Commercial Components (MCC)
- Package / Case
- TO-226-3, TO-92-3 (TO-226AA) Formed Leads
- Datasheet
- Download
- Description
- TRANS NPN 30V 1A TO92
- Stock
- 39,353
- In Stock ：
- 39,353
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Micro Commercial Components (MCC)
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Time@Peak Reflow Temperature-Max (s) :
- 10
- Current - Collector (Ic) (Max) :
- 1A
- Number of Terminations :
- 3
- Transition Frequency :
- 130MHz
- Polarity/Channel Type :
- NPN
- Surface Mount :
- No
- Package / Case :
- TO-226-3, TO-92-3 (TO-226AA) Formed Leads
- Current - Collector Cutoff (Max) :
- 100nA ICBO
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 70 @ 100mA 1V
- Configuration :
- Single
- Operating Temperature :
- 150°C TJ
- Terminal Position :
- BOTTOM
- Terminal Finish :
- Matte Tin (Sn)
- JESD-609 Code :
- e3
- Peak Reflow Temperature (Cel) :
- 260
- Transistor Element Material :
- SILICON
- Pin Count :
- 3
- ECCN Code :
- EAR99
- Number of Elements :
- 1
- Vce Saturation (Max) @ Ib, Ic :
- 500mV @ 100mA, 1A
- Voltage - Collector Emitter Breakdown (Max) :
- 30V
- Power - Max :
- 800mW
- Frequency - Transition :
- 130MHz
- JESD-30 Code :
- O-PBCY-T3
- Mounting Type :
- Through Hole
- Transistor Type :
- NPN
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- KSD471A-O-AP
NPN 150°C TJ 100nA ICBO 1 Elements 3 Terminations SILICON NPN TO-226-3, TO-92-3 (TO-226AA) Formed Leads Through Hole
KSD471A-O-AP Overview
As explained above, DC current gain takes into account the rate at which the base current flows through the collector current; therefore, DC current gain for this device is 70 @ 100mA 1V.In VCE saturation, Ic is at its maximum value (saturated), and the vce saturation (Max) is 500mV @ 100mA, 1A.The part has a transition frequency of 130MHz.Device displays Collector Emitter Breakdown (30V maximal voltage).
KSD471A-O-AP Features
the DC current gain for this device is 70 @ 100mA 1V
the vce saturation(Max) is 500mV @ 100mA, 1A
a transition frequency of 130MHz
KSD471A-O-AP Applications
There are a lot of Micro Commercial Co
KSD471A-O-AP applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
