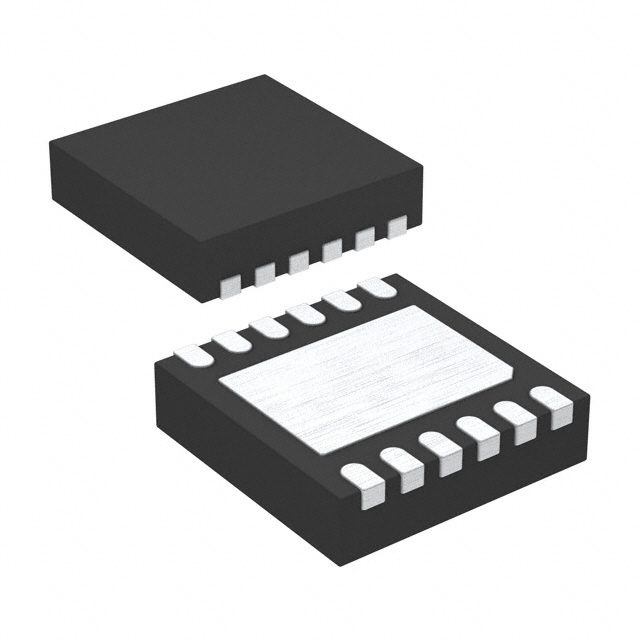

LT6600CDF-2.5#PBF

Manufacturer :

Analog Devices, Inc.

Product Category :

Instrumentation, OP Amps, Buffer Amps

Dual Supply Voltage (Max) :

±5.5(V)

Qualification Status :

Not Qualified

Neg Supply Voltage-Nom (Vsup) :

-5 V

Operating Temperature (Max) :

70C

Series :

LT6600-2.5

Product Type :

Differential Amplifiers

Operating Temperature (Min) :

0C

Operating Supply Current :

26 mA

Supply Current-Max :

36 mA

Single Supply Voltage (Min) :

2.7(V)

Terminal Form :

Gull wing

Amplifier Type :

Differential

JESD-30 Code :

S-PDSO-G12

Rad Hardened :

No

Product Category :

Differential Amplifiers

ECCN Code :

EAR99

Pin Count :

12

Current - Input Bias :

15 µA

Slew Rate :

-

Subcategory :

Amplifier ICs

Input Offset Voltage-Max :

35000 µV

Mounting Style :

SMD/SMT

Mounting Type :

Surface Mount

Supplier Device Package :

12-DFN (4x4)

Package Type :

DFN EP

Brand :

Analog Devices

Power Supply Requirement :

Single/Dual

Reach Compliance Code :

Compliant

Brand Name :

Linear Technology

Surface Mount :

yes

Number of Terminals :

12

Voltage - Input Offset :

5 mV

Single Supply Voltage (Max) :

11(V)

RoHS :

Details

Terminal Position :

Dual

Number of Functions :

1

Terminal Finish :

Matte Tin (Sn)

Width :

4 mm

Current - Supply :

28mA

JESD-609 Code :

e3

Seated Height-Max :

0.8 mm

Package Shape :

Square

Terminal Pitch :

0.5 mm

Operating Temperature :

0°C ~ 70°C

Number of Channels :

1 Channel

Packaging :

Rail/Tube

Operating Temperature Classification :

COMMERCIAL

Length :

4 mm

Package / Case :

DFN-12

Dual Supply Voltage (Typ) :

±5(V)

Output Type :

Differential

Peak Reflow Temperature (Cel) :

260

Dual Supply Voltage (Min) :

±1.35(V)

Power Supplies :

3/5/+-5 V

Product Status :

Active

Single Supply Voltage (Typ) :

3/5(V)

Supply Voltage Limit-Max :

5.5 V

HTS Code :

8542.33.00.01

Temperature Grade :

COMMERCIAL

Filter Type :

Low Pass Filter

Base Product Number :

LT6600

Manufacturer :

Analog Devices Inc.

Package :

Tube

Number of Circuits :

1
