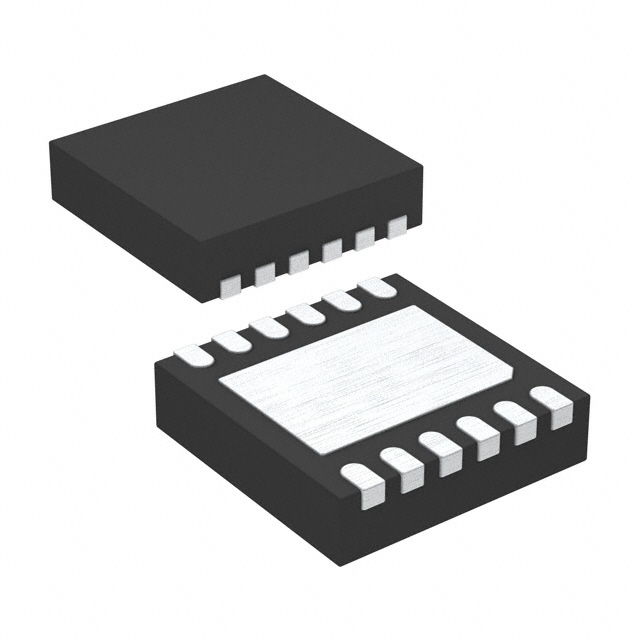

LT6600CDF-2.5

Manufacturer :

Analog Devices, Inc.

Product Category :

Instrumentation, OP Amps, Buffer Amps

Neg Supply Voltage-Nom (Vsup) :

-5V

Mounting Type :

Surface Mount

Length :

4mm

Number of Functions :

1

Time@Peak Reflow Temperature-Max (s) :

30

Number of Circuits :

1

Pin Count :

12

Surface Mount :

yes

Base Part Number :

LT6600

Operating Temperature :

0°C~70°C

Neg Supply Voltage-Max (Vsup) :

-5.5V

Supply Voltage :

5V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Height Seated (Max) :

0.8mm

Amplifier Type :

Differential

Common Mode Rejection Ratio :

63 dB

JESD-609 Code :

e3

RoHS Status :

Non-RoHS Compliant

Peak Reflow Temperature (Cel) :

260

ECCN Code :

EAR99

Terminal Position :

Dual

Voltage - Supply, Single/Dual (±) :

3V~11V ±1.5V~5.5V

Packaging :

Tube

Power Supplies :

3/5/+-5V

Qualification Status :

Not Qualified

Voltage - Input Offset :

5mV

Terminal Form :

Gull wing

Supply Voltage Limit-Max :

5.5V

Width :

4mm

Terminal Pitch :

0.5mm

Current - Supply :

28mA

Current - Input Bias :

15µA

Number of Terminations :

12

Terminal Finish :

Matte Tin (Sn)

Package / Case :

12-WFDFN Exposed Pad
