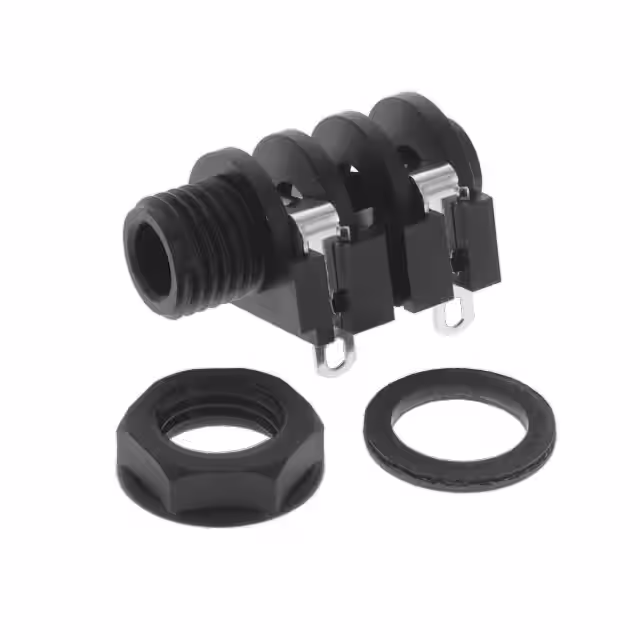

MJ-63032A

Manufacturer :

CUI Devices

Product Category :

Audio Connectors

Termination :

Solder Eyelet(s)

Type :

AUDIO JACK

Packaging :

Bulk

Number of Contacts :

2(POS)

Signal Lines :

Mono

Manufacturer :

CUI Devices

Mating Length/Depth :

1.220 (31.00mm)

Operating Temperature :

-25°C ~ 70°C

Orientation :

RIGHT ANGLE

Connector Type :

Phone Jack

Contact Plating :

Silver

Cable Opening :

-

Standard :

6.3 mm

Product Diameter (mm) :

Not Required(mm)

Thread Size :

7/16-20

Operating Temp Range :

-25C to 70C

Body Orientation :

RIGHT ANGLE

Termination Style :

Solder Lug

Switch Configuration :

Not Switched

Operating Temperature Min Deg. C :

-25C

Includes :

-

Body Color :

Black

Mounting Type :

Panel Mount, Right Angle

Voltage Rating :

12 VDC

Panel Hole Size :

-

Product Depth (mm) :

33.2(mm)

Number of Positions/Contacts :

2 Conductors, 2 Contacts

Mounting Style :

Panel

Internal Switch(s) :

Does Not Contain Switch

Gender :

F

Color :

Black

Contact Material - Plating :

Silver

Product Length (mm) :

20(mm)

Contact Material :

Phosphor Bronze

Brand :

CUI Devices

Voltage - Rated :

12VDC

Current Rating (Amps) :

1 A

Product Status :

Active

Number of Terminals :

2

Insulation Color :

-

Operating Temperature Max Deg. C :

70C

Features :

Mounting Hardware, Thread Lock

Current Rating (Max) :

1(A)

Housing Material :

Polyamide 6/6

Accessory Type :

-

Subcategory :

Audio and Video Connectors

Number of Ports :

1(Port)

Shielding :

Unshielded

Industry Recognized Mating Diameter :

6.35mm (0.250, 1/4) - Headphone

Series :

-

Termination Method :

Solder Lug

Product Category :

Phone Connectors

Product Type :

Phone Connectors

Body Material :

-

Number of Positions :

1 Position

Mating Cycles :

5000 Cycles

Package :

Bag

Actual Diameter :

0.252 (6.40mm)
