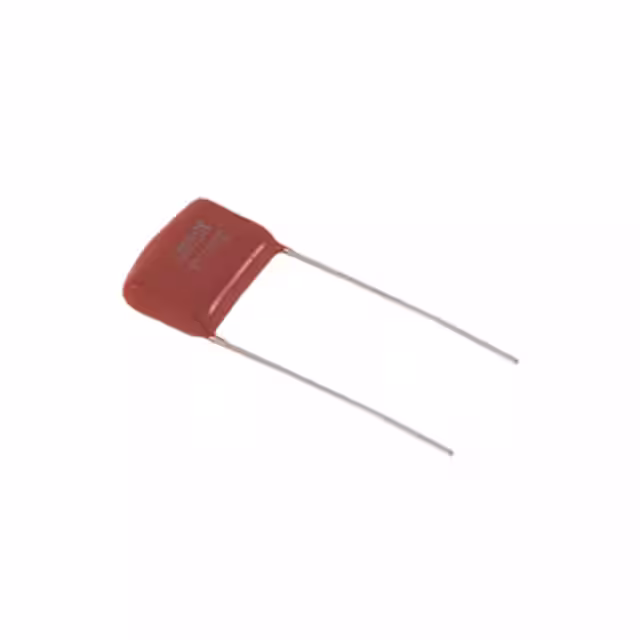

MLR333K250

Manufacturer :

NTE Electronics, Inc.

Product Category :

Film Capacitors

Manufacturer :

NTE Electronics

Terminal Pitch :

10 mm

Capacitance :

0.033 µF

Operating Temperature :

-55°C ~ 85°C

Applications :

GENERAL PURPOSE

Negative Tolerance :

10%

Size Code :

5524

Dielectric Material :

Polyester

Voltage Rating - AC :

125V

Width :

6 mm

Product Status :

Active

Lead Length :

0.73

Height - Seated (Max) :

0.453" (11.50mm)

HTS Code :

8532.25.00.80

Ratings :

-

Number of Terminals :

2

Tolerance :

±10%

Package Type :

Radial Oval

Package Quantity :

1

Mount :

Through Hole

Voltage Rating - DC :

250V

Size / Dimension :

0.551" L x 0.236" W (14.00mm x 6.00mm)

Rated (AC) Voltage (URac) :

125 V

Composition :

Mylar

Rated (DC) Voltage (URdc) :

250 V

Max Operating Temperature :

85 °C

Lead Spacing :

0.394" (10.00mm)

Package :

Bag

Package / Case :

Radial

Termination :

PC Pins

Reach Compliance Code :

Unknown

Lead Diameter :

0.024

Min Operating Temperature :

-55 °C

Length :

14 mm

Capacitor Type :

FILM CAPACITOR

Mounting Type :

Through Hole

ECCN Code :

EAR99

Series :

MLR

Positive Tolerance :

10%

RoHS :

Non-Compliant

Height :

10 mm

Features :

-

Lead Pitch :

10 mm
