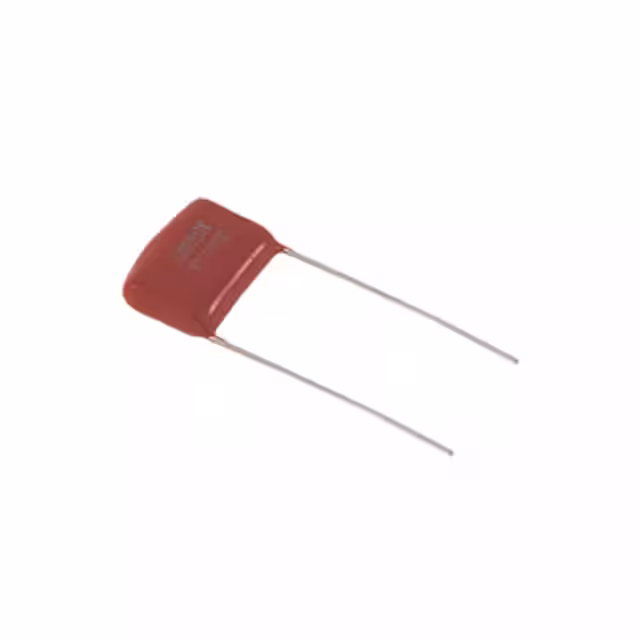

MLR333K50

Manufacturer :

NTE Electronics, Inc.

Product Category :

Film Capacitors

RoHS :

No

Size / Dimension :

0.217" L x 0.118" W (5.50mm x 3.00mm)

ECCN Code :

EAR99

Height - Seated (Max) :

0.433" (11.00mm)

Min Operating Temperature :

-55 °C

Voltage Rating - AC :

35V

Capacitor Type :

FILM CAPACITOR

Package :

Bag

Tolerance :

±10%

Rated (DC) Voltage (URdc) :

50 V

HTS Code :

8532.25.00.80

Terminal Pitch :

3.5 mm

Dielectric Material :

Polyester

Lead Pitch :

3.5 mm

Applications :

GENERAL PURPOSE

Termination :

PC Pins

Negative Tolerance :

10%

Length :

6.5 mm

Reach Compliance Code :

Unknown

Ratings :

-

Size Code :

2616

Lead Diameter :

0.02

Lead Spacing :

0.138" (3.50mm)

Lead Length :

0.73

Series :

MLR

Positive Tolerance :

10%

Max Operating Temperature :

85 °C

Capacitance :

0.033 µF

Number of Terminals :

2

Voltage Rating - DC :

50V

Width :

4 mm

Rated (AC) Voltage (URac) :

35 V

Features :

-

Height :

9.5 mm

Package Quantity :

1

Operating Temperature :

-55°C ~ 85°C

Composition :

Mylar

Manufacturer :

NTE Electronics

Product Status :

Active

Mount :

Through Hole

Package Type :

Radial Oval
