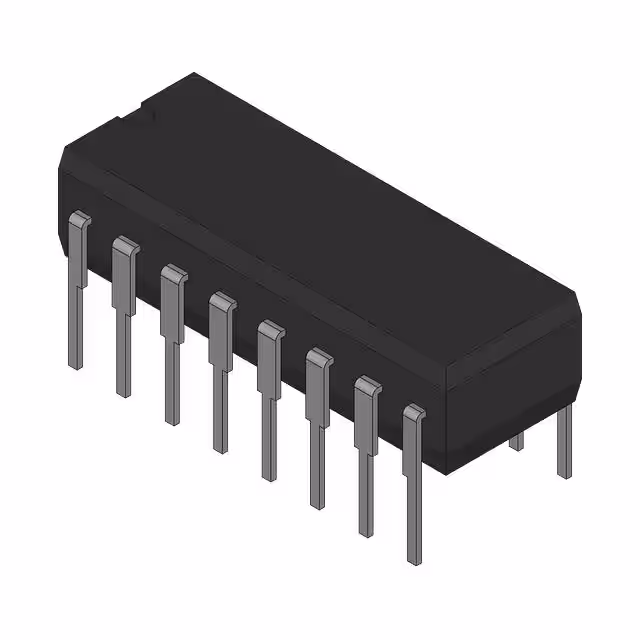

MUX24BQ

Manufacturer :

Analog Devices, Inc.

Product Category :

Analog Switches, Multiplexers, Demultiplexers

Package Shape :

RECTANGULAR

Operating Temperature :

-55°C ~ 125°C

Number of Functions :

1

Surface Mount :

No

Terminal Position :

Dual

Additional Feature :

Overvoltage Protection

Seated Height-Max :

5.08 mm

JESD-609 Code :

e0

Number of Circuits :

2

Length :

19.05 mm

Switch-on Time-Max :

2000 ns

Terminal Pitch :

2.54 mm

Temperature Grade :

Military

Switch Circuit :

SP4T

Package :

Bulk

Analog IC - Other Type :

DIFFERENTIAL MULTIPLEXER

Neg Supply Voltage-Nom (Vsup) :

-15 V

-3db Bandwidth :

-

Current - Leakage (IS(off)) (Max) :

2nA

JESD-30 Code :

R-GDIP-T16

Terminal Form :

THROUGH-HOLE

On-state Resistance Match-Nom :

27 Ω

Series :

-

Width :

7.62 mm

Terminal Finish :

TIN LEAD

Package / Case :

16-CDIP (0.300, 7.62mm)

Off-state Isolation-Nom :

66 dB

Charge Injection :

-

Switch-off Time-Max :

600 ns

Multiplexer/Demultiplexer Circuit :

4:1

Number of Channels :

4

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Voltage - Supply, Single (V+) :

15V

On-State Resistance (Max) :

400Ohm

Mounting Type :

Through Hole

Voltage - Supply, Dual (V±) :

±15V

Number of Terminals :

16

Channel Capacitance (CS(off), CD(off)) :

2.5pF, 7pF

Product Status :

Active

Reach Compliance Code :

Unknown

Pin Count :

16

Switch Time (Ton, Toff) (Max) :

2µs, 600ns

Pbfree Code :

No

Crosstalk :

-70dB @ 500kHz

Supplier Device Package :

16-CERDIP
