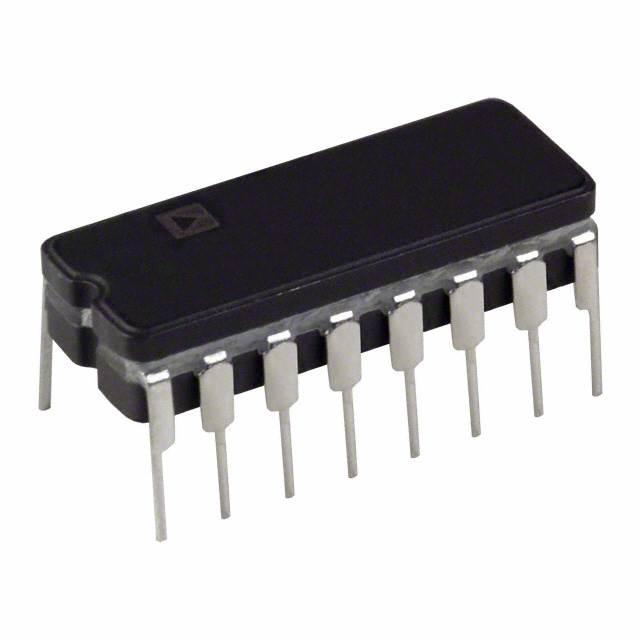

MUX24FQ
Or copy the link below:
- Mfr.Part #
- MUX24FQ
- Manufacturer
- Analog Devices, Inc.
- Package / Case
- 16-CDIP (0.300, 7.62mm)
- Datasheet
- Download
- Description
- IC MULTIPLEXER DUAL 4X1 16CDIP
- Stock
- 8,266
- In Stock ：
- 8,266
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Analog Devices, Inc.
- Product Category :
- Analog Switches, Multiplexers, Demultiplexers
- Terminal Pitch :
- 2.54 mm
- Temperature Grade :
- Other
- Terminal Finish :
- TIN LEAD
- Max Dual Supply Voltage :
- 18 V
- Number of Pins :
- 16
- Package Shape :
- RECTANGULAR
- JESD-30 Code :
- R-GDIP-T16
- On-state Resistance Match-Nom :
- 27 Ω
- Terminal Position :
- Dual
- Seated Height-Max :
- 5.08 mm
- Number of Terminals :
- 16
- Analog IC - Other Type :
- DIFFERENTIAL MULTIPLEXER
- Base Product Number :
- MUX24
- Switch-on Time-Max :
- 2000 ns
- Number of Functions :
- 1
- Series :
- -
- Reach Compliance Code :
- Unknown
- Length :
- 19.05 mm
- Switch-off Time-Max :
- 600 ns
- Lead Free :
- Contains Lead
- Number of Channels :
- 4
- Package :
- Tube
- Surface Mount :
- No
- Width :
- 7.62 mm
- Off-state Isolation-Nom :
- 66 dB
- RoHS :
- Compliant
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Package / Case :
- 16-CDIP (0.300, 7.62mm)
- Pin Count :
- 16
- Packaging :
- Bulk
- Terminal Form :
- THROUGH-HOLE
- Supplier Device Package :
- 16-CERDIP
- Product Status :
- Obsolete
- JESD-609 Code :
- e0
- Throw Configuration :
- 4PST
- Number of Circuits :
- 2
- Pbfree Code :
- No
- Neg Supply Voltage-Nom (Vsup) :
- -15 V
- Additional Feature :
- Overvoltage Protection
- Mounting Type :
- Through Hole
- Datasheets
- MUX24FQ
Analog Switches, Multiplexers, Demultiplexers by Analog Devices, Inc. MUX24FQ Overview
Introducing the MUX24FQ from Analog Devices, Inc., a state-of-the-art IC multiplexer that brings high efficiency and reliability to your dual 4x1 channel multiplexing needs. Packaged in a robust 16CDIP format, this component is ideal for advanced applications requiring precise signal routing and management. The MUX24FQ stands out for its ability to seamlessly integrate into various electronic systems, offering a flexible solution for digital and analog signal multiplexing. Its durable design ensures long-lasting performance, making it a preferred choice for industry professionals looking to enhance system reliability and functionality. The Analog Switches, Multiplexers, Demultiplexers by Analog Devices, Inc. MUX24FQ is engineered to meet the demanding specifications of today's sophisticated electronics, ensuring your designs achieve optimal performance and scalability.
MUX24FQ Features
The MUX24FQ boasts a dual 4x1 configuration, allowing for efficient channel management and signal routing in complex circuits. Key features include low on-resistance and high off-isolation, minimizing signal leakage and ensuring integrity. Its compatibility with dual supplies ranging from ±5V to ±18V or a single supply from 10V to 36V makes it extremely versatile for various operational environments. The device's enhanced electrostatic discharge (ESD) protection guarantees robustness in physically demanding scenarios, further solidifying its role as a reliable component in any electronic setup.
MUX24FQ Applications
- Data Acquisition Systems: In these systems, the MUX24FQ is used to select among multiple input signals, enabling precise control over which data is processed at any given time. This is critical for accuracy and efficiency in measurements.
- Communication Equipment: This device can efficiently manage multiple signal inputs, ensuring clear and uninterrupted signal routing in equipment such as routers and switches.
- Test Equipment: The MUX24FQ's ability to handle high-voltage signals makes it ideal for integration into test setups, where multiple inputs need to be switched between without compromising signal integrity.
- Audio/Video Signal Routing: It is used in AV systems to select and route different audio and video signals, enhancing media system flexibility and performance.
- Medical Monitoring Systems: In medical devices, accurate and reliable signal routing is paramount. The MUX24FQ facilitates the management of various biometric signals, crucial for patient monitoring and diagnostics.
