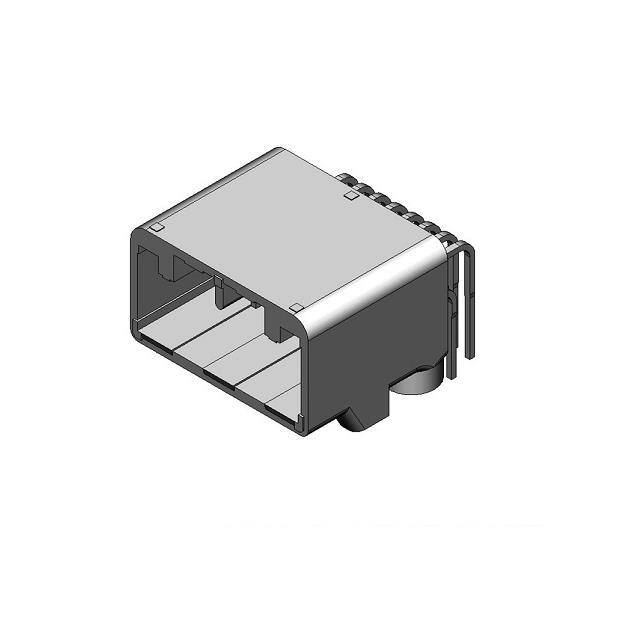

MX84B016NF1
Or copy the link below:
- Mfr.Part #
- MX84B016NF1
- Manufacturer
- JAE Electronics
- Package / Case
- Datasheet
- Download
- Description
- CONN PIN HEADER 16 POS R/A
- Stock
- 46
- In Stock ：
- 46
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- JAE Electronics
- Product Category :
- Headers, Male Pins
- Insulation Material :
- Syndiotactic Polystyrene (SPS), Glass Filled
- Contact Finish - Post :
- Tin
- Type :
- Headers
- Insulation Color :
- Black
- Contact Finish Thickness - Post :
- -
- Base Product Number :
- MX84B
- Voltage Rating :
- -
- Fastening Type :
- Locking Ramp
- Series :
- MX84B
- Number of Positions :
- 16 Position
- Package :
- Tube
- Pitch - Mating :
- 0.087 (2.20mm)
- Minimum Operating Temperature :
- - 40 C
- Style :
- Board to Cable/Wire
- Applications :
- -
- Accessory Type :
- -
- Contact Finish Thickness - Mating :
- -
- Mounting Style :
- Through Hole
- RoHS :
- Details
- Features :
- Mounting Flange
- Current Rating (Amps) :
- 3A
- Product :
- Headers
- Shrouding :
- Shrouded - 4 Wall
- Mated Stacking Heights :
- -
- Pitch :
- 2.2 mm
- Contact Length - Post :
- 0.126 (3.20mm)
- Maximum Operating Temperature :
- + 85 C
- Contact Plating :
- Tin
- Termination :
- Solder
- Packaging :
- Tube
- Contact Material :
- Brass
- Mounting Type :
- Through Hole, Right Angle
- Overall Contact Length :
- -
- Product Status :
- Active
- Ingress Protection :
- -
- Number of Rows :
- 2 Row
- Contact Length - Mating :
- 0.303 (7.70mm)
- Contact Type :
- Male Pin
- Current Rating :
- 3 A
- Operating Temperature :
- -40°C ~ 85°C
- Gender :
- Pin (Male)
- Contact Finish - Mating :
- Tin
- Contact Shape :
- Square
- Number of Positions Loaded :
- All
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Insulation Height :
- 0.626 (15.90mm)
- Connector Type :
- Header
- Material Flammability Rating :
- UL94 V-0
- Termination Style :
- Solder Pin
- Datasheets
- MX84B016NF1
