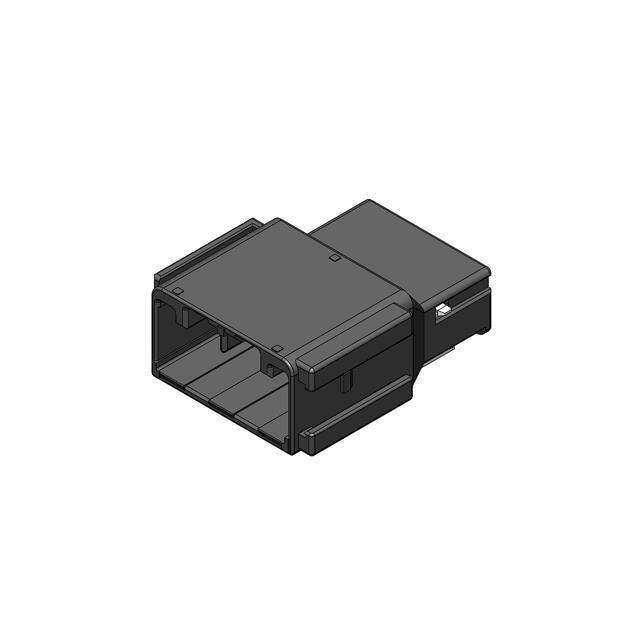

MX84B016PF1
Or copy the link below:
- Mfr.Part #
- MX84B016PF1
- Manufacturer
- JAE Electronics
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG HSG 16POS 2.20MM
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- JAE Electronics
- Product Category :
- Rectangular Connector Housings
- Length :
- 23.5 mm
- Number of Positions :
- 16 Position
- Fastening Type :
- Latch Holder
- Note :
- Contacts Not Included
- Mounting Angle :
- Straight
- Current Rating :
- 3 A
- Base Product Number :
- MX84B
- Termination Style :
- Crimp
- Product :
- Housings
- Features :
- Retainer
- Color :
- Black
- Height :
- 13.4 mm
- Accessory Type :
- -
- Contact Gender :
- Without Pin Contacts
- Contact Type :
- Male Pin
- Mounting Type :
- Free Hanging (In-Line)
- Contact Plating :
- Tin
- Gender :
- Plug (Male)
- Dimensions :
- 23.5 mm x 34.8 mm x 13.4 mm
- Package :
- Tray
- Series :
- MX84B
- Flammability Rating :
- UL 94 V-0
- Product Status :
- Active
- Packaging :
- Tray
- Width :
- 34.8 mm
- Contact Termination :
- Crimp
- Pitch :
- 2.2 mm
- Number of Rows :
- 2 Row
- Mounting Style :
- Cable Mount / Free Hanging
- Connector Type :
- PLUG
- RoHS :
- Details
- Row Spacing :
- 0.118 (3.00mm)
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Datasheets
- MX84B016PF1
MX84B016PF1 datasheet pdf and Barrel - Power Connectors product details from JAE Electronics stock available at Xinshop
You may place an order without registering to Xinshop. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
