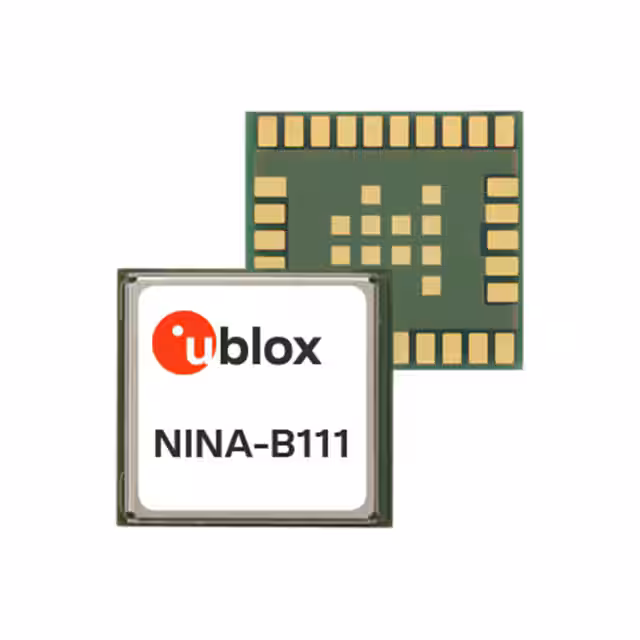

NINA-B111-04B

Manufacturer :

u-blox

Product Category :

RF Transceiver Modules and Modems

Protocol :

Bluetooth 5.0

Utilized IC / Part :

nRF52832

Package / Case :

30-SMD Module

Length :

10.6 mm

Height :

2.2 mm

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Memory Size :

512 kb

Antenna Type :

Antenna Not Included

Class :

Bluetooth Low Energy (BLE)

Sensitivity :

- 95 dBm

Power - Output :

7dBm

Minimum Operating Temperature :

- 40 C

Voltage - Supply :

1.7V ~ 3.6V

RF Family/Standard :

Bluetooth

Operating Temperature :

-40°C ~ 85°C

Series :

NINA-B1

Tradename :

Nina

Frequency :

2.4 GHz

Serial Interfaces :

ADC, GPIO, I²C, SPI, UART

Maximum Operating Temperature :

+ 85 C

Mounting Style :

PCB Mount

Product Status :

Active

Width :

10 mm

Output Power :

7 dBm

Current - Receiving :

5.4mA

Operating Supply Voltage :

3 V

Mounting Type :

Surface Mount

Modulation :

GFSK

Current - Transmitting :

5.3mA

Type :

USB Adapter

Shielding :

Shielded

Data Rate :

1 Mb/s, 2 Mb/s

Packaging :

Cut Tape

Interface Type :

GPIO, I2C, SPI, UART, USB

Product :

Bluetooth Modules
