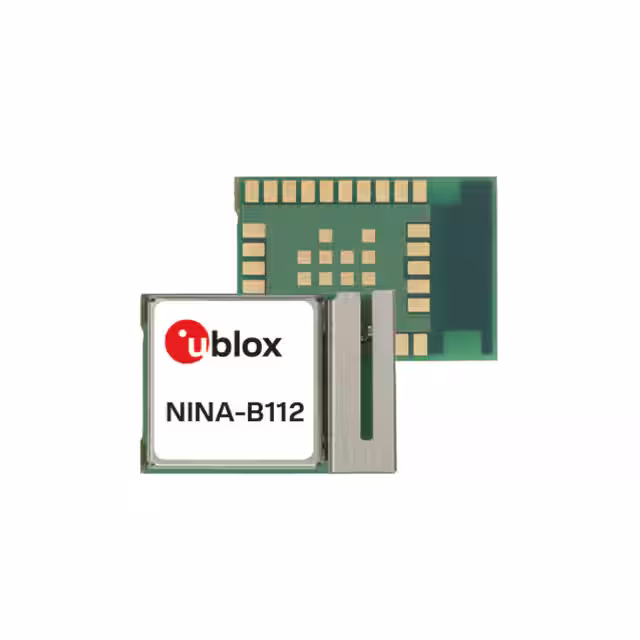

NINA-B112-04B

Manufacturer :

u-blox

Product Category :

RF Transceiver Modules and Modems

Operating Temperature :

-40°C ~ 85°C

Brand :

u-blox

Antenna Type :

Integrated, Chip

Mounting Type :

Surface Mount

Shielding :

Shielded

Frequency :

2.4GHz

Mounting Style :

PCB Mount

Memory Size :

512kB Flash, 64KB RAM

Product Category :

Bluetooth Modules - 802.15.1

Modulation :

GFSK

Length :

14 mm

Operating Supply Voltage :

3 V

Product Type :

Bluetooth Modules

Packaging :

MouseReel

Utilized IC / Part :

nRF52832

Product Status :

Active

Voltage - Supply :

1.7V ~ 3.6V

Product :

Bluetooth Modules

Package / Case :

30-SMD Module

Maximum Operating Temperature :

+ 85 C

Class :

Bluetooth Low Energy (BLE)

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Sensitivity :

-95dBm

Serial Interfaces :

ADC, GPIO, I²C, I²S, PWM, SPI, UART, USB

Type :

USB Adapter

Minimum Operating Temperature :

- 40 C

Base Product Number :

NINA-B112

Tradename :

Nina

Current - Transmitting :

5.3mA

Output Power :

6 dBm

Subcategory :

Wireless and RF Modules

Current - Receiving :

5.4mA

Width :

10 mm

Protocol :

Bluetooth v5.0

Manufacturer :

u-blox

Power - Output :

6dBm

Data Rate :

2Mbps

Series :

NINA-B1

Interface Type :

GPIO, I2C, SPI, UART, USB

RF Family/Standard :

Bluetooth

Height :

3.8 mm
