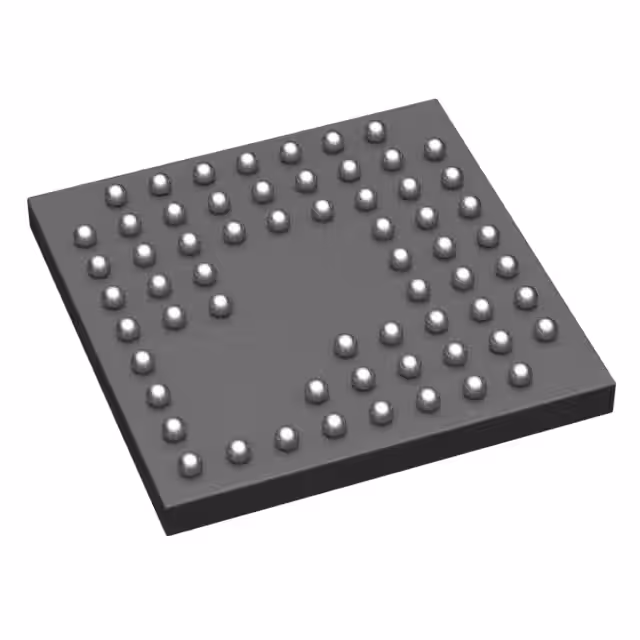

NRF51822-CFAC-R7

Manufacturer :

Nordic Semiconductor

Product Category :

RF Transceiver ICs

GPIO :

yes

Operating Temperature :

-25 to 75 °C

Package / Case :

62-UFBGA, WLCSP

Ethernet :

No

Current - Transmitting :

4.7mA ~ 16mA

Sensitivity :

-96dBm

Type :

TxRx + MCU

Interface Type :

I2C/SPI/UART

Number of Terminals :

62

Mounting Type :

Surface Mount

Program Memory Type :

Flash

Instruction Set Architecture :

RISC

Supplier Device Package :

62-WLCSP (3.5x3.83)

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Telecom IC Type :

TELECOM CIRCUIT

Current - Receiving :

8.7mA ~ 13.4mA

RF Family/Standard :

Bluetooth, General ISM > 1GHz

Memory Size :

256kB Flash, 32kB RAM

Memory Type :

RAM

Data Rate :

2 Mbps

Data Rate (Max) :

2Mbps

Mounting :

Surface Mount

Voltage - Supply :

1.8V ~ 3.6V

Serial Interfaces :

I²C, SPI, UART

Operating Supply Voltage :

3 V

Modulation :

GFSK

Min Operating Temperature :

-25 °C

RAM Size :

32 kb

Terminal Pitch :

0.4 mm

RoHS :

Non-Compliant

Packaging :

Tape and Reel

Width :

3.83 mm

Seated Height-Max :

0.55 mm

Protocol :

Bluetooth v4.1

Number of CPU Cores :

1

Base Product Number :

nRF51822

Reach Compliance Code :

Compliant

Max Operating Temperature :

75 °C

Length :

3.83 mm

Number of Functions :

1

Manufacturer :

Nordic Semiconductor

Terminal Position :

BOTTOM

Package Shape :

Square

Frequency :

2.4GHz

Series :

-

JESD-30 Code :

S-PBGA-B62

Device Core :

ARM Cortex M0

Data Bus Width :

32 bit

Power - Output :

4dBm

Terminal Form :

Ball

Surface Mount :

yes

Temperature Grade :

COMMERCIAL EXTENDED

HTS Code :

8542.39.00.01

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Product Status :

Not For New Designs
