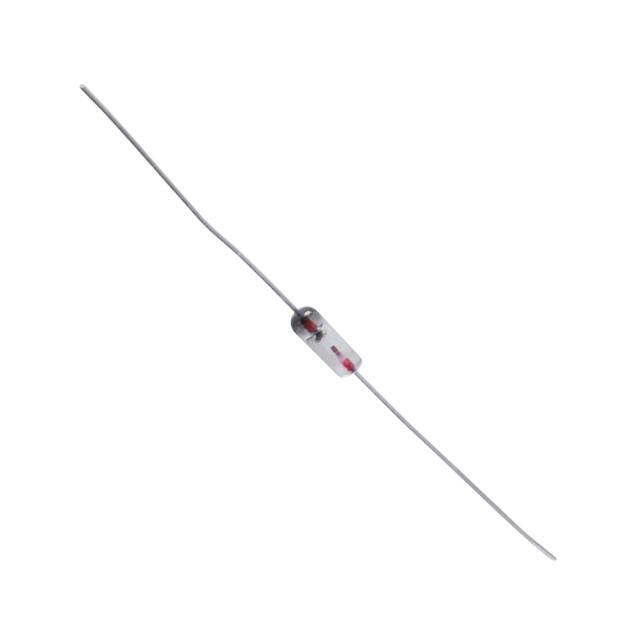

NTE109-5

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Rectifiers - Single

Voltage - Forward (Vf) (Max) @ If :

1 V @ 200 mA

Manufacturer :

NTE Electronics

RoHS :

Compliant

Number of Pins :

2

Mounting Type :

Through Hole

Max Forward Surge Current (Ifsm) :

500 mA

Min Operating Temperature :

-78 °C

Current - Reverse Leakage @ Vr :

100 µA @ 50 V

Mount :

Reverse

Forward Current :

60 mA

Max Operating Temperature :

90 °C

Diode Type :

Standard

Current - Average Rectified (Io) :

40mA

Voltage - DC Reverse (Vr) (Max) :

100 V

Max Repetitive Reverse Voltage (Vrrm) :

100 V

Product Status :

Active

Series :

-

Package :

Bag

Forward Voltage :

1 V

Operating Temperature - Junction :

-65°C ~ 90°C

REACH SVHC :

No SVHC

Capacitance @ Vr, F :

0.8pF @ 1V, 1MHz

Package / Case :

DO-204AA, DO-7, Axial

Supplier Device Package :

DO-7

Speed :

Small Signal =< 200mA (Io), Any Speed

Element Configuration :

Single
