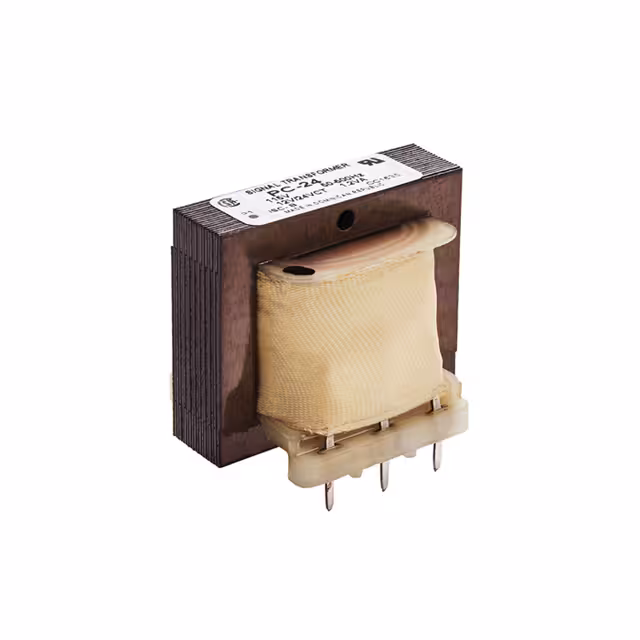

PC-10-440

Manufacturer :

Signal Transformer

Product Category :

Power Transformers

Output Power :

4.4W

Weight :

0.313lb 141.97g

Approval Agency :

UL; CSA

Voltage - Isolation :

1500Vrms

Operating Frequency-Min :

0.05kHz

Max Output Current :

440mA

Length :

41.3mm

Additional Feature :

OPERATING FREQUENCY: 50-500 HZ

Termination Style :

PC Pin

Power - Max :

4.4VA

Size / Dimension :

41.30mm Lx31.80mm W

Height Seated (Max) :

34.92mm

Center Tap :

No

Current - Output (Max) :

Parallel 880mA Series 440mA

Width :

31.8mm

Published :

2009

Primary Winding(s) :

Single

Moisture Sensitivity Level (MSL) :

Not Applicable

Output Voltage 1 :

5V

Voltage - Secondary (Full Load) :

Parallel 5V Series 10V

Output Voltage 2 :

5V

Operating Frequency-Max :

0.5kHz

HTS Code :

8504.31.40.35

Type :

Laminated Core

ECCN Code :

EAR99

Max Power Dissipation :

4.4W

Mount :

Through Hole

Secondary Winding(s) :

Dual

Termination :

PC Pin

VA Rating :

4.4 VA

Factory Lead Time :

18 Weeks

Lead Free :

Lead Free

Voltage - Primary :

115V

Mounting Type :

Through Hole

Series :

PC

RoHS Status :

ROHS3 Compliant

Height :

34.9mm
