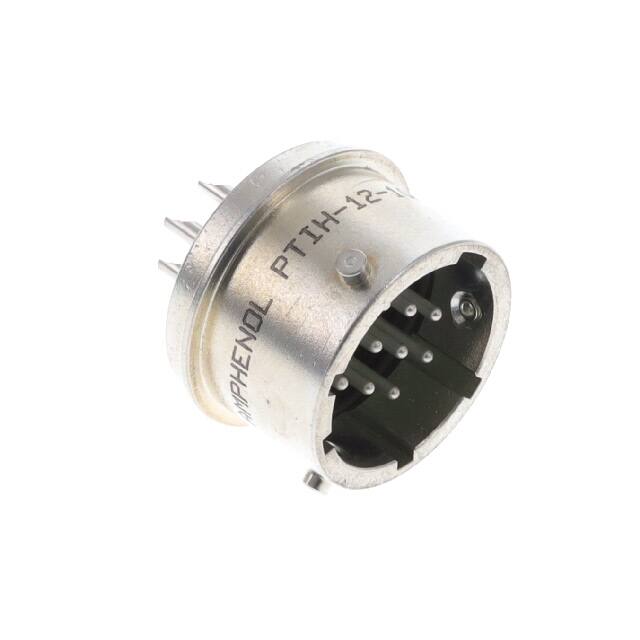

PTIH-12-10P

Manufacturer :

Amphenol Aerospace Operations

Product Category :

Circular Connector Assemblies

Contact Material :

COPPER ALLOY

Termination Style :

Solder

Operating Temperature :

-55°C ~ 125°C

Material Flammability Rating :

-

Insert Material :

Neoprene

Housing Gender :

FEMALE

Mounting Feature :

-

Shell Material :

Aluminum

Product :

Receptacles

Shell Size :

12

Mounting :

Panel Mount

Product Status :

Active

Mounting Type :

Panel Mount

Mounting Style :

CABLE

Fastening Type :

Bayonet Lock

Voltage Rating :

-

Current Rating :

5 A

Accessory Type :

-

Shell Size - Insert :

12-10

Connector Type :

Receptacle, Male Pins

Primary Material :

Metal

Mounting Angle :

Straight

Wire Gauge :

20-24

Number of Positions :

10

RoHS :

N

Package :

Bag

Base Product Number :

PTIH

Tradename :

PT 26482

Termination :

Solder Cup

Brand :

Amphenol Aerospace

Termination Method :

Solder

Applications :

Aerospace, Industrial, Instrumentation, Mass Transit, Military

Manufacturer :

Amphenol

Product Length :

21.15 mm

Contact Gender :

Pin

Color :

Olive Drab

Shell Size, MIL :

-

Contact Finish Thickness - Mating :

-

Backshell Material, Plating :

-

Product Category :

Standard Circular Connector

Cable Opening :

-

Strain Relief :

No

Series :

PT

Gender :

Receptacle

Shielding :

Unshielded

Subcategory :

Circular Connectors

Orientation :

N (Normal)

Ingress Protection :

-

Shell Style :

Receptacle

Features :

Hermetically Sealed

Shell Finish :

Olive Drab Chromate over Cadmium

Shell Plating :

Tin

Current Rating (Amps) :

5A

Product Type :

Standard Circular Connector

Body Orientation :

Straight

Contact Finish - Mating :

Tin

Contact Plating :

Tin
