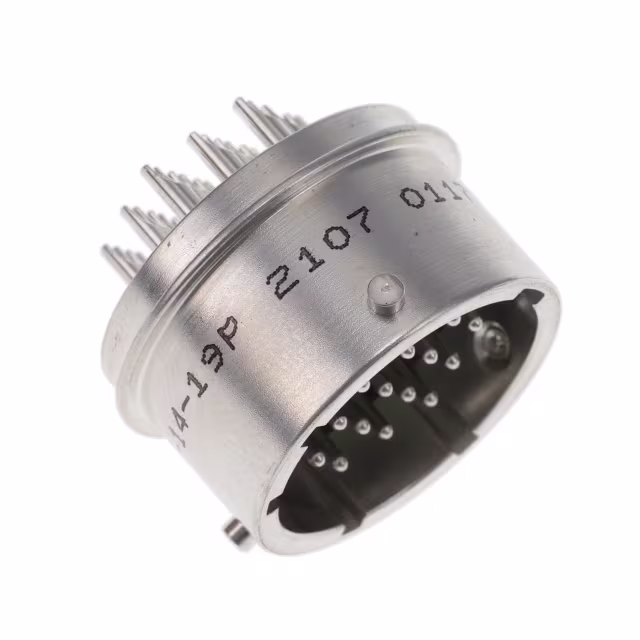

PTIH-14-19P

Manufacturer :

Amphenol Aerospace Operations

Product Category :

Circular Connector Assemblies

Operating Temperature :

-55°C ~ 125°C

Subcategory :

Circular Connectors

Color :

Olive Drab

Mounting Angle :

Straight

Body Orientation :

Straight

Product Category :

Standard Circular Connector

Mounting Feature :

-

Shell Material :

Aluminum

Contact Material :

COPPER ALLOY

Insert Material :

Neoprene

Strain Relief :

No

Termination Style :

Solder

Product Status :

Active

Product Length :

21.15 mm

Accessory Type :

-

Housing Gender :

FEMALE

Features :

Hermetically Sealed

Manufacturer :

Amphenol

Contact Plating :

Tin

Shell Size - Insert :

14-19

Mating Style :

Bayonet

Current Rating (Amps) :

5A

Connector Type :

Receptacle, Male Pins

Gender :

Receptacle

Voltage Rating :

-

Fastening Type :

Bayonet Lock

Product Diameter (mm) :

Not Required(mm)

Primary Material :

Metal

Contact Finish Thickness - Mating :

-

Product Length (mm) :

21.03(mm)

Shielding :

Unshielded

Package :

Bag

Shell Size / Insert Arrangement :

14-19

Applications :

Aerospace, Industrial, Instrumentation, Mass Transit, Military

Mounting Style :

Panel

Brand :

Amphenol Aerospace

Cable Opening :

-

Contact Gender :

Pin

Family :

PT

Mounting :

Panel Mount

Type :

Circular

Material Flammability Rating :

-

Contact Classification :

19Signal

Shell Plating :

Cadmium over Nickel

Shell Finish :

Olive Drab Chromate over Cadmium

Rad Hardened :

No

Contact Finish - Mating :

Tin

Backshell Material, Plating :

-

Product :

Connectors

Base Product Number :

PTIH

Number of Positions :

19

Shell Style :

Receptacle

Termination :

Solder Cup

Operating Temp Range :

-55C to 125C

Number of Ports :

1(Port)

Series :

PT

Current Rating (Max) :

7.5/Contact(A)

Ingress Protection :

-

Orientation :

N (Normal)

Number of Contacts :

19(POS)

Tradename :

PT 26482

Mounting Type :

Panel Mount

Termination Method :

Solder

RoHS :

N

Shell Size, MIL :

-

Number of Terminals :

19

Product Type :

Standard Circular Connector
