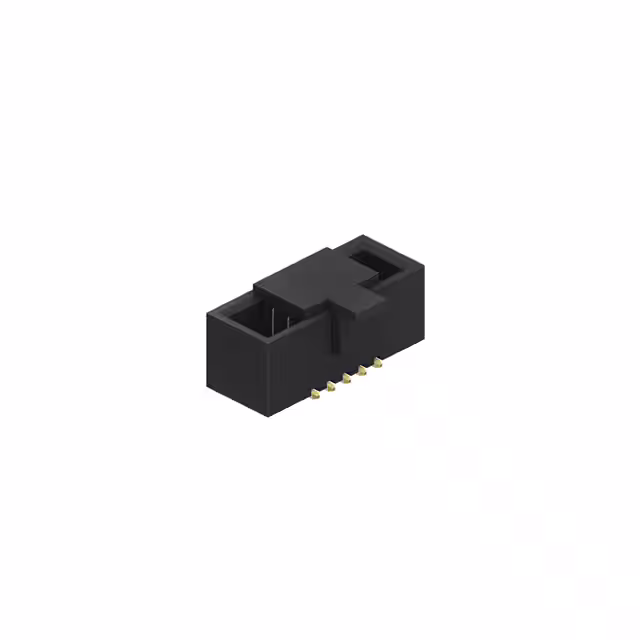

PX10-AF6WP(50)
Or copy the link below:
- Mfr.Part #
- PX10-AF6WP(50)
- Manufacturer
- Hirose
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 12POS 3.4MM
- Stock
- 7,399
- In Stock ：
- 7,399
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Hirose
- Product Category :
- Headers, Male Pins
- Pitch - Mating :
- 0.134 3.40mm
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Mount :
- Through Hole
- Voltage - Rated :
- 600V
- Durability :
- 1000 Cycles
- Number of Positions Loaded :
- All
- Pbfree Code :
- yes
- Fastening Type :
- Push-Pull
- Reach Compliance Code :
- Unknown
- Published :
- 2001
- Contact Finish - Mating :
- Gold
- Contact Shape :
- Square
- Empty Shell :
- No
- Length - Termination :
- 0.177 inch
- Contact Length - Post :
- 0.177 4.50mm
- Number of Conductors :
- ONE
- Reference Standard :
- UL
- Number of Rows :
- 2
- UL Flammability Code :
- 94V-0
- Current Rating :
- 10A
- Shrouding :
- Shrouded - 4 Wall
- Connector Type :
- Header
- JESD-609 Code :
- e3
- Filter Feature :
- No
- DIN Conformance :
- No
- Series :
- PX
- Style :
- Board to Cable/Wire
- Insulation Height :
- 0.583 14.80mm
- Insulation Resistance :
- 1000000000Ohm
- Contact Resistance :
- 10MOhm
- Mixed Contacts :
- No
- Mounting Type :
- Through Hole, Right Angle
- Housing Material :
- Plastic
- Number of Positions :
- 12
- Reliability :
- COMMERCIAL
- Packaging :
- Tray
- Contact Type :
- Male Pin
- MIL Conformance :
- No
- Contact Material :
- COPPER ALLOY
- Operating Temperature :
- -55°C~105°C
- Contact Arrangement :
- S0P6
- IEC Conformance :
- No
- Feature :
- Board Lock
- Housing Color :
- Black
- RoHS Status :
- RoHS Compliant
- Option :
- GENERAL PURPOSE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Free :
- Lead Free
- Orientation :
- Straight
- Termination :
- Solder
- Material Flammability Rating :
- UL94 V-0
- Contact Gender :
- FEMALE
- Datasheets
- PX10-AF6WP(50)
PX Series 2-Row Header Solder Copper Alloy Tray Through Hole, Right Angle Gold Polybutylene Terephthalate (PBT) 12-Position Board to Cable/Wire 0.583 14.80mm Height
PX10-AF6WP(50) Overview
A Header package is included with it.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Tray case.It is part of the PX Series of products.A number of features make it more powerful because of its Board Lock feature.Through Hole mounts the part.There is no operating temperature for the device.
PX10-AF6WP(50) Features
PX series
PX10-AF6WP(50) Applications
There are a lot of Hirose Electric Co Ltd
PX10-AF6WP(50) Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
