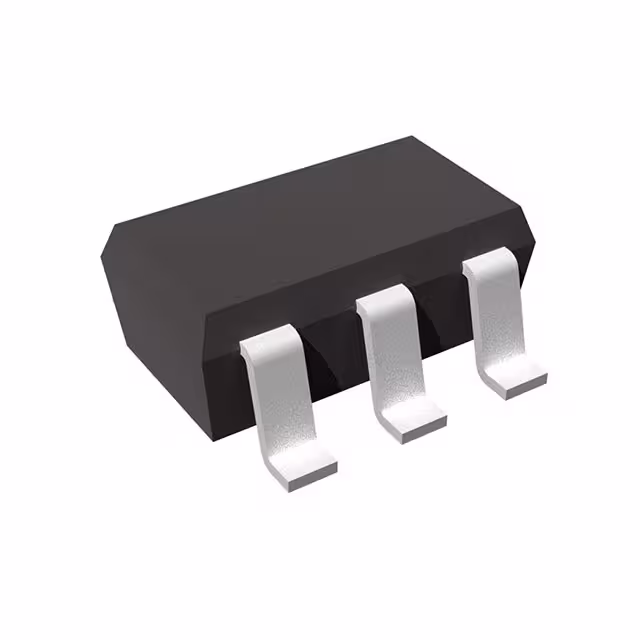

R1160N091A-TR-FE

Manufacturer :

Nisshinbo Micro Devices

Product Category :

Voltage Regulators - Linear

Terminal Form :

Gull wing

Height Seated (Max) :

1.3mm

Terminal Finish :

Matte Tin (Sn)

RoHS Status :

RoHS Compliant

Packaging :

Tape and Reel (TR)

Factory Lead Time :

9 Weeks

Regulator Type :

FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Dropout Voltage1-Max :

0.7V

Length :

2.9mm

Width :

1.6mm

Terminal Pitch :

0.95mm

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Terminal Position :

Dual

Pbfree Code :

yes

Output Current1-Max :

0.25A

Number of Functions :

1

Input Voltage (Max) :

6V

Input Voltage (Min) :

1.4V

Output Voltage1-Min :

0.855V

Output Voltage 1 :

0.9V

ECCN Code :

EAR99

Surface Mount :

yes

Output Voltage1-Max :

0.945V

Number of Terminations :

5

JESD-609 Code :

e3

HTS Code :

8542.39.00.01

Pin Count :

5

Qualification Status :

Not Qualified

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

JESD-30 Code :

R-PDSO-G5
