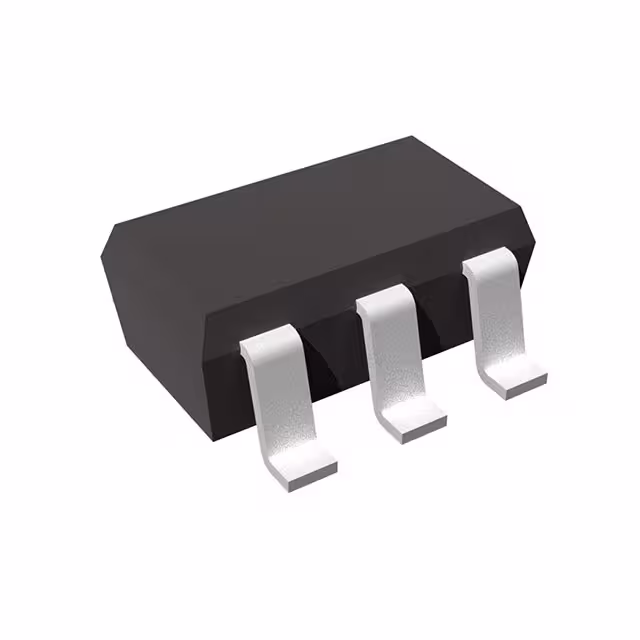

R1160N181B-TR-FE

Manufacturer :

Nisshinbo Micro Devices

Product Category :

Voltage Regulators - Linear

JESD-30 Code :

R-PDSO-G5

Output Current1-Max :

0.25A

Output Voltage1-Max :

1.854V

Packaging :

Tape and Reel (TR)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Output Voltage1-Min :

1.746V

Width :

1.6mm

Number of Functions :

1

ECCN Code :

EAR99

Terminal Finish :

Matte Tin (Sn)

Qualification Status :

Not Qualified

Dropout Voltage1-Max :

0.3V

JESD-609 Code :

e3

Terminal Form :

Gull wing

Factory Lead Time :

9 Weeks

Number of Terminations :

5

Input Voltage (Min) :

1.4V

HTS Code :

8542.39.00.01

Input Voltage (Max) :

6V

Terminal Pitch :

0.95mm

Regulator Type :

FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Pin Count :

5

Terminal Position :

Dual

Length :

2.9mm

Surface Mount :

yes

Height Seated (Max) :

1.3mm

Output Voltage 1 :

1.8V

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Pbfree Code :

yes

RoHS Status :

RoHS Compliant
