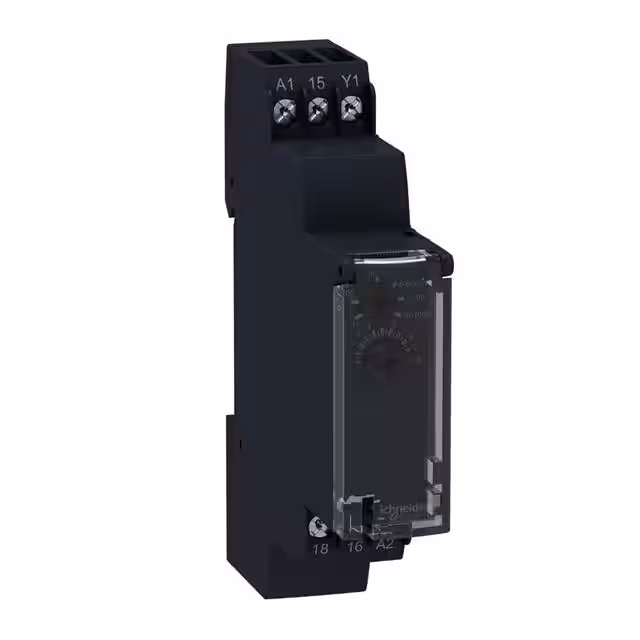

RE17LAMW

Manufacturer :

Schneider Electric

Product Category :

Time Delay Relays

Relay Type :

Solid State Relay

Switching current (max.) :

0.7A

Time range(s) :

0.1 s,100 h

Timing Adjustment Method :

Screwdriver Slot

Contact Configuration :

SPDT

Electrical lifespan :

1000 00000 cycles

Product Type :

Timing Relays

Min. temperature :

-20°C

Timing Initiate Method :

Input Voltage

Max. switching capacity :

175VA

Manufacturer :

Schneider Electric

Mode of Operation :

On Delay

Voltage - Supply :

24 ~ 240VAC/DC

Minimum Operating Temperature :

-20°C

Contact Rating @ Voltage :

20A @ 250VAC/DC

Mounting Style :

DIN Rail Mount

Product Status :

Active

Time range (min.) :

0.1s

Brand :

Schneider Electric

Switch Configuration :

SPST

Depth :

72mm

Content :

1pc(s)

Connection :

Screw terminal,Screw terminals

Weight :

0.07

Dielectric Strength :

5 kV

Function :

On-Delay

Width :

17.5mm

Switching voltage (max.) :

250V AC

Time Delay :

Number of Contacts :

1

Time range (max.) :

100H

Circuit :

SPDT (1 Form C)

Product Category :

Time Delay and Timing Relays

Delay Time :

0.1 Sec ~ 100 Hrs

Min. operating voltage :

24V DC,24V AC

Height :

90mm

Max. temperature :

+60°C

Functions :

On-Delay

Dim :

(W x H x D) 17.5 x 90 x 72 mm

Operating Supply Voltage :

24 VAC to 240 VAC, 24 VDC to 240 VDC

Terminal Type :

Screw

Length :

90mm

Max. operating voltage :

240V DC,240V AC

Supply Voltage :

240V AC

Mounting Type :

DIN Rail

Contact Current :

700mA

Series :

Harmony

Package :

Box

Termination Style :

Screw Terminal

Subcategory :

Relays

Maximum Operating Temperature :

+60°C

Power Rating :

1.5 W

Type :

Monofunctional
