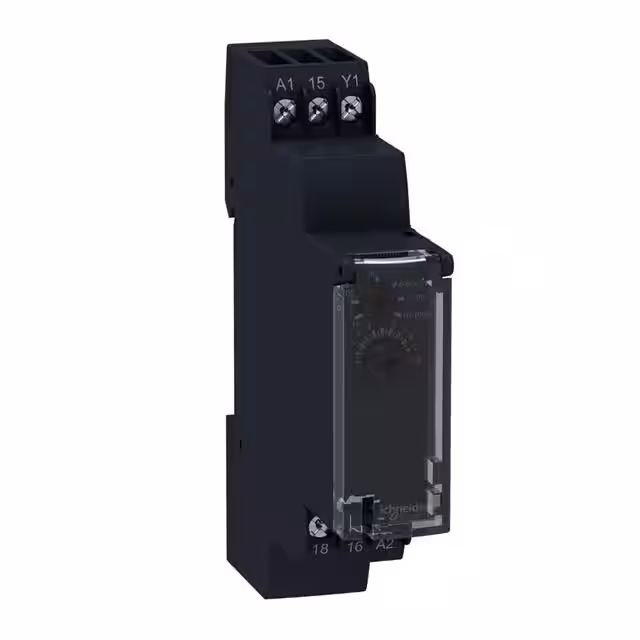

RE17RAMU

Manufacturer :

Schneider Electric

Product Category :

Time Delay Relays

Electrical lifespan :

100000 cycles

Max. temperature :

+60°C

Rated control supply voltage at AC 50 Hz :

24 - 240

Length :

90mm

Circuit :

SPDT (1 Form C)

Type of electric connection :

Screw connection

Mode of Operation :

On Delay

Timing Initiate Method :

Input Voltage

Manufacturer :

Schneider Electric

Time Delay :

Durability :

1000 0000 cycles

Connection :

Screw terminal,Screw terminals

Rated control supply voltage at AC 60 Hz :

24 - 240

Product Type :

Timing Relays

Max. operating voltage :

240V AC

Min. operating voltage :

24V DC,24V AC

Time range (min.) :

0.1s

Operating Supply Voltage :

24 VAC to 240 VAC, 24 VDC

Number of Contacts :

1

Subcategory :

Relays

Content :

1pc(s)

Contact Material :

CADMIUM FREE

Min. temperature :

-20°C

Function :

On-Delay

Package :

Box

Delay Time :

0.1 Sec ~ 100 Hrs

Relay Type :

Mechanical Relay

Type :

Monofunctional

Width :

17.5mm

Contact Rating @ Voltage :

8A @ 250VAC

Voltage - Supply :

24 ~ 240VAC

Dim :

(W x H x D) 17.5 x 90 x 72 mm

Series :

Harmony

Rated control supply voltage at DC :

24 - 24

Weight :

0.08

Mounting Type :

DIN Rail

Nominal current :

8

Mounting Style :

DIN Rail Mount

Functions :

On-delay with memory

Contact Current :

8A

Time range (max.) :

100H

Timing Adjustment Method :

Screwdriver Slot

Voltage type for actuating :

AC/DC

Termination Style :

Screw Terminal

Maximum Operating Temperature :

+60°C

Supply Voltage :

240V AC

Minimum Operating Temperature :

-20°C

Product Status :

Active

Depth :

72mm

Contact Configuration :

SPDT

Terminal Type :

Screw

Switching current (max.) :

8A

Switch Configuration :

SPST

Height :

90mm

Brand :

Schneider Electric

Time range(s) :

0.1 s,100 h

Product Category :

Time Delay and Timing Relays

Max. switching capacity :

2000VA

Switching voltage (max.) :

250V AC
