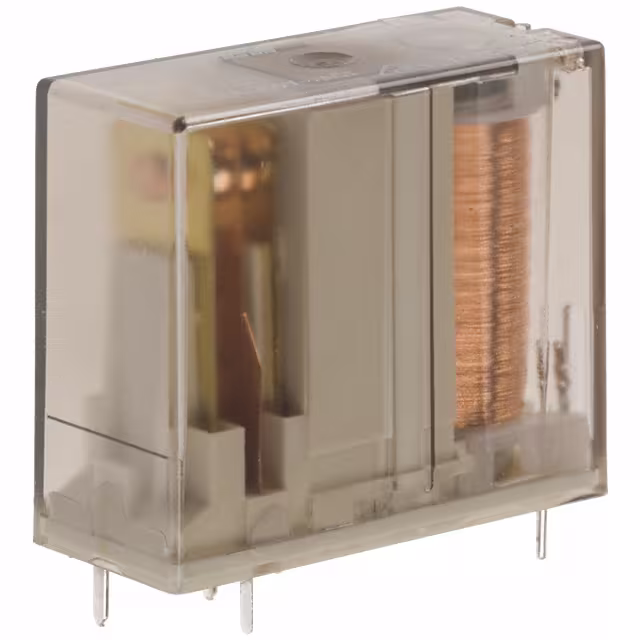

RP810048

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

Power Relays, Over 2 Amps

Seal Rating :

Sealed - Fully

Positions Per Level :

9

Product Status :

Active

Turn On Voltage (Max) :

33.6 VDC

Current :

20 A

Housing Material :

Thermoplastic

Contact Material :

Silver Cadmium Oxide (AgCdO)

Release Time :

2ms

Coil Resistance :

4.4 kOhms

Contact Material - Plating :

-

Mating Orientation :

Vertical with Board

Features :

Interlocking (Side)

Switching Voltage :

400VAC - Max

Screw Material - Plating :

Steel - Zinc Plated

Base Product Number :

VJ09

Must Release Voltage :

4.8 VDC

Packaging :

Tube

Coil Voltage :

48VDC

Number of Levels :

1

Contact Rating (Current) :

12A

Voltage :

300 V

Wire Termination :

Screw - Rising Cage Clamp

Coil Insulation :

-

Coil Current :

10.9mA

Operating Temperature :

-40°C ~ 115°C

Coil Power :

500 mW

Termination Style :

PC Pin

Color :

Green

Series :

VJ

Contact Form :

SPDT (1 Form C)

Coil Type :

Non Latching

Turn Off Voltage (Min) :

4.8 VDC

Pitch :

0.197 (5.00mm)

Clamp Material - Plating :

Brass - Nickel Plated

Screw Thread :

M3

Operate Time :

8ms

Wire Gauge :

12-30 AWG

Mounting Type :

Through Hole

Relay Type :

GENERAL PURPOSE

Package :

Bulk

Must Operate Voltage :

33.6 VDC

Torque - Screw :

0.4 Nm (3.5 Lb-In)
