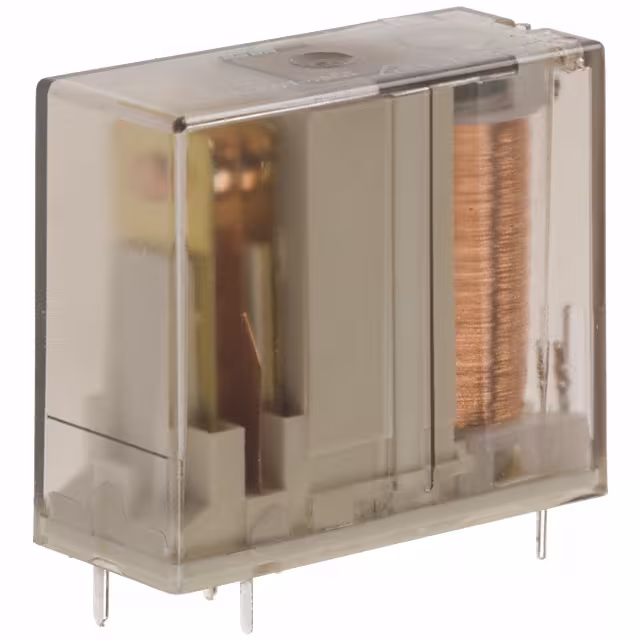

RP818005
Or copy the link below:
- Mfr.Part #
- RP818005
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE SPDT 12A 5V
- Stock
- 49,312
- In Stock ：
- 49,312
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Power Relays, Over 2 Amps
- Mounting Feature :
- Flange
- Release Time :
- 2ms
- Base Product Number :
- RP81
- Features :
- Sealed - Fully
- Color :
- Silver
- Package :
- Retail Package
- Turn On Voltage (Max) :
- 3.5 VDC
- Mounting Type :
- Panel Mount, Through Hole
- Coil Type :
- Non Latching
- Coil Power :
- 500 mW
- Termination :
- Solder
- Operate Time :
- 8ms
- Must Operate Voltage :
- 3.5 VDC
- Primary Material :
- Metal
- Moisture Sensitivity Level (MSL) :
- --
- Turn Off Voltage (Min) :
- 0.5 VDC
- Contact Form :
- SPDT (1 Form C)
- Relay Type :
- GENERAL PURPOSE
- Shell Finish :
- Passivated
- Switching Voltage :
- 400VAC - Max
- Packaging :
- Tube
- Contact Finish - Mating :
- Gold
- Series :
- 806
- Connector Type :
- Plug, Male Pins
- Operating Temperature :
- -65°C ~ 175°C
- Shell Material :
- Stainless Steel
- Coil Resistance :
- 54 Ohms
- Must Release Voltage :
- 0.5 VDC
- Shell Size - Insert :
- 35-28
- Termination Style :
- PC Pin
- Product Status :
- Active
- Contact Material :
- COPPER ALLOY
- Seal Rating :
- Sealed - Fully
- Coil Current :
- 92.6mA
- Coil Voltage :
- 5VDC
- Coil Insulation :
- -
- Fastening Type :
- Threaded
- Contact Rating (Current) :
- 12A
- Orientation :
- B
- Datasheets
- RP818005
RP818005 datasheet pdf and Power Relays, Over 2 Amps product details from TE Connectivity stock available at
