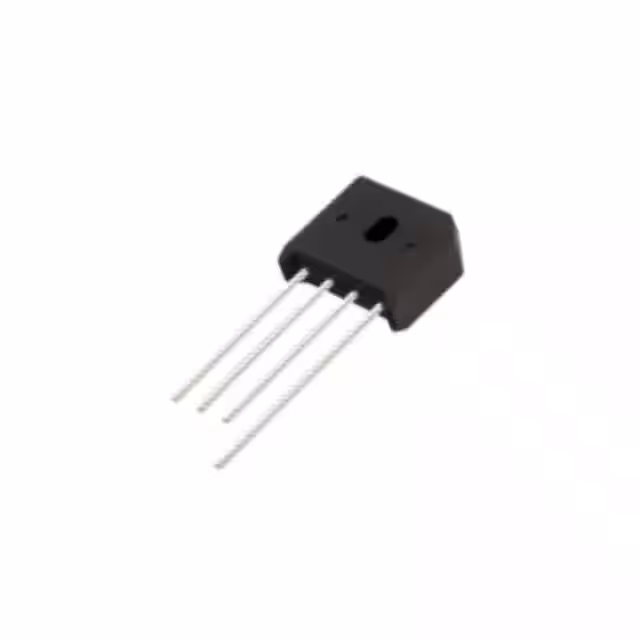

RS2002M

Manufacturer :

Rectron USA

Product Category :

Diodes - Bridge Rectifiers

Vf - Forward Voltage :

1.1 V

Product Status :

Active

Type :

Single Phase Bridge

Height :

20.3 mm

Max Surge Current :

300 A

Tolerance :

Recovery Time - < 60Hz

Series :

RS200

Mounting Style :

SMD/SMT

Package / Case :

RS-20M

Package :

Tube

Subcategory :

Diodes and Rectifiers

RoHS :

Y

Packaging :

Case - RS-20M

Operating Temperature :

-55°C ~ 150°C (TJ)

Product Category :

Bridge Rectifiers

Minimum Operating Temperature :

- 55 C

Width :

4.8 mm

Current - Average Rectified (Io) :

20 A

Voltage :

Reverse Voltage Vr - 100V

Voltage - Peak Reverse (Max) :

100 V

Mounting Type :

THROUGH-HOLE

Product Type :

Bridge Rectifiers

Maximum Operating Temperature :

+ 150 C

Brand :

Rectron

Voltage - Forward (Vf) (Max) @ If :

1.1 V @ 10 A

Manufacturer :

Rectron

Termination Style :

Through Hole

Current - Reverse Leakage @ Vr :

5 µA @ 100 V

Supplier Device Package :

RS-20M

Length :

30.3 mm

Diode Type :

Single Phase

Technology :

Standard
