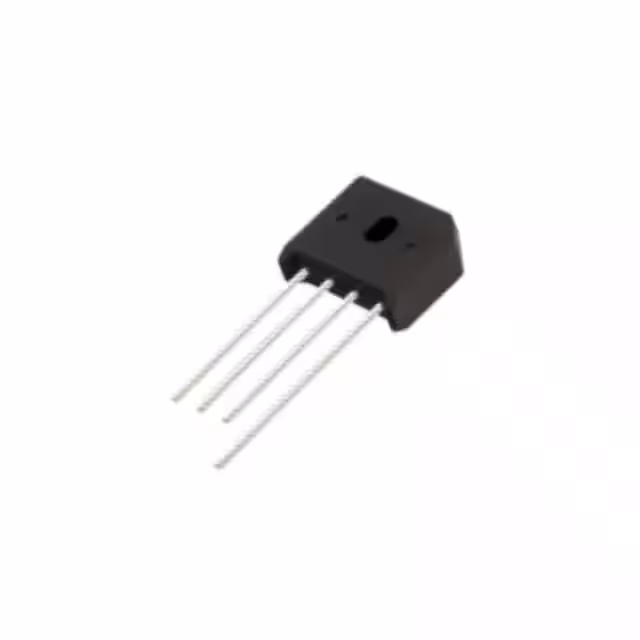

RS2004M

Manufacturer :

Rectron USA

Product Category :

Diodes - Bridge Rectifiers

Product Category :

Bridge Rectifiers

Voltage - Peak Reverse (Max) :

400 V

Current - Average Rectified (Io) :

20 A

Series :

-

Product Type :

Bridge Rectifiers

Tolerance :

Recovery Time - < 60Hz

Supplier Device Package :

RS-20M

Subcategory :

Diodes and Rectifiers

Package / Case :

4-SIP, RS-20M

Brand :

Rectron

Width :

4.8 mm

Mounting Style :

Through Hole

Current - Reverse Leakage @ Vr :

5 µA @ 400 V

Package :

Tube

Voltage - Forward (Vf) (Max) @ If :

1.1 V @ 10 A

Type :

Single Phase Bridge

Vf - Forward Voltage :

1.1 V

Product Status :

Active

Mounting Type :

Through Hole

Length :

30.3 mm

Height :

20.3 mm

Termination Style :

Solder Lead

RoHS :

Y

Operating Temperature :

-55°C ~ 150°C (TJ)

Minimum Operating Temperature :

- 55 C

Maximum Operating Temperature :

+ 150 C

Max Surge Current :

300 A

Voltage :

Reverse Voltage Vr - 400V

Diode Type :

Single Phase

Packaging :

Case - RS-20M

Manufacturer :

Rectron
