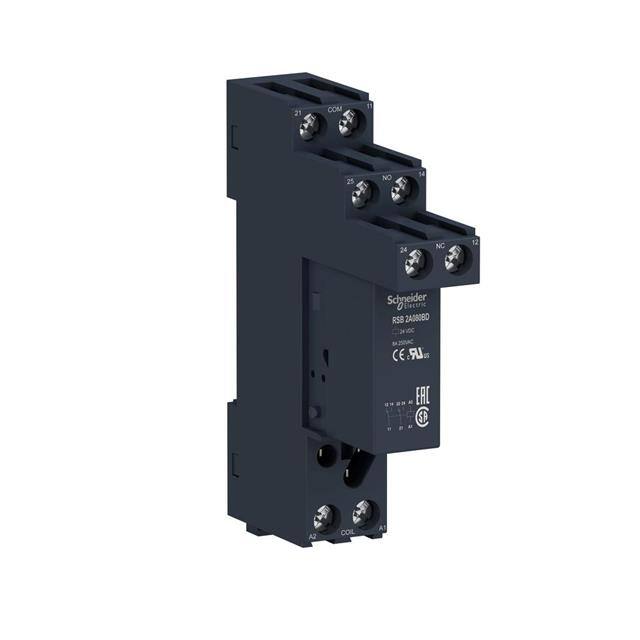

RSB2A080BDS
Or copy the link below:
- Mfr.Part #
- RSB2A080BDS
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, INTERFACE PLUG-IN RELAY
- Stock
- 30
- In Stock ：
- 30
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Contact Form :
- SPST (1 Form A)
- Degree of protection (IP) :
- IP20
- Product Type :
- Industrial Relays
- Switching Voltage :
- 400 VAC, 300 VDC
- Features :
- -
- Material contact :
- Other
- Operate Time :
- 9 ms
- Coil Resistance :
- 1440Ω
- Coil Current :
- 16.7 mA
- Contact Configuration :
- DPDT
- Package :
- Box
- Mounting Style :
- Socket
- Must Operate Voltage :
- -
- Number of contacts as change-over contact :
- 2
- Depth :
- 15.7
- Nominal current :
- 8
- Series :
- RSB
- Number of contacts as normally open contact :
- 0
- Coil Termination :
- Plug Pin
- IP Rating :
- IP20
- Voltage type for actuating :
- DC
- Contact Rating (Current) :
- 8 A
- Switching Current :
- 8A
- Type of electric connection :
- Screw connection
- Coil Type :
- -
- Rated control supply voltage at DC :
- 24 - 24
- Operating Temperature :
- -40°C ~ 70°C
- Width :
- 12.5
- Contact Material :
- Silver Alloy
- Type :
- Harmony Relay
- Termination Style :
- Plug In
- Coil Voltage :
- 24V dc
- Relay Type :
- GENERAL PURPOSE
- Length :
- 84.2 mm
- Product :
- Industrial Relays
- With detachable clamps :
- No
- Contact Current Rating :
- 8:00 AM
- Number of contacts as normally closed contact :
- 0
- Release Time :
- 4 ms
- Must Release Voltage :
- 2.4 VDC
- Coil Insulation :
- -
- Contact Current :
- 8A
- Subcategory :
- Relays
- RoHS :
- Details
- Product Category :
- Industrial Relays
- Manufacturer :
- Schneider Electric
- Mounting Type :
- Plug In
- Product Status :
- Active
- Material of contact surface :
- Other
- Number of Poles :
- 2
- Seal Rating :
- -
- Current Rating :
- 12 A
- Height :
- 29
- Brand :
- Schneider Electric
- Contact Termination :
- Plug Pin
- Datasheets
- RSB2A080BDS
