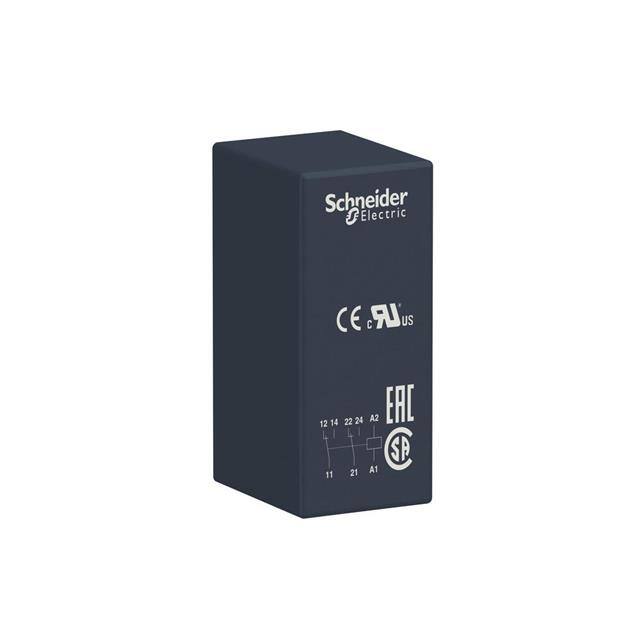

RSB2A080FD
Or copy the link below:
- Mfr.Part #
- RSB2A080FD
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, INTERFACE PLUG-IN RELAY
- Stock
- 5
- In Stock ：
- 5
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Number of contacts as normally open contact :
- 0
- Material contact :
- Other
- Coil Insulation :
- -
- Manufacturer :
- Schneider Electric
- Relay Type :
- GENERAL PURPOSE
- Contact Termination :
- Solder Pin
- Release Time :
- 20 ms
- Mounting Type :
- Socketable
- Number of contacts as change-over contact :
- 2
- Maximum Input Voltage :
- 110V dc
- Seal Rating :
- -
- Features :
- -
- Current Rating :
- 12 A
- Termination Style :
- Plug In
- Operate Time :
- 20 ms
- Coil Resistance :
- 30.25 kOhms
- Degree of protection (IP) :
- IP40
- Subcategory :
- Relays
- Brand :
- Schneider Electric
- Must Release Voltage :
- 11 VDC
- Contact Form :
- DPDT (2 Form C)
- Must Operate Voltage :
- 88 VDC
- Type of electric connection :
- Plug-in connection
- Number of contacts as normally closed contact :
- 0
- Switching Voltage :
- 250VAC, 300VDC - Max
- Material of contact surface :
- Other
- Operating Temperature :
- -40°C ~ 85°C
- Mounting Style :
- Plug In
- Depth :
- 19.6
- Coil Voltage :
- 110VDC
- Coil Termination :
- Plug Pin
- Product :
- Industrial Relays
- With detachable clamps :
- yes
- Rated control supply voltage at DC :
- 110 - 110
- Nominal current :
- 8
- Contact Rating (Current) :
- 8 A
- Coil Type :
- Non Latching
- Height :
- 29
- Width :
- 12.5
- Voltage type for actuating :
- DC
- Product Category :
- Industrial Relays
- Coil Current :
- 3.6 mA
- Product Type :
- Industrial Relays
- Product Status :
- Active
- Package :
- Box
- RoHS :
- Details
- Contact Material :
- Silver Nickel (AgNi)
- Series :
- Harmony
- Contact Configuration :
- DPDT
- Datasheets
- RSB2A080FD
