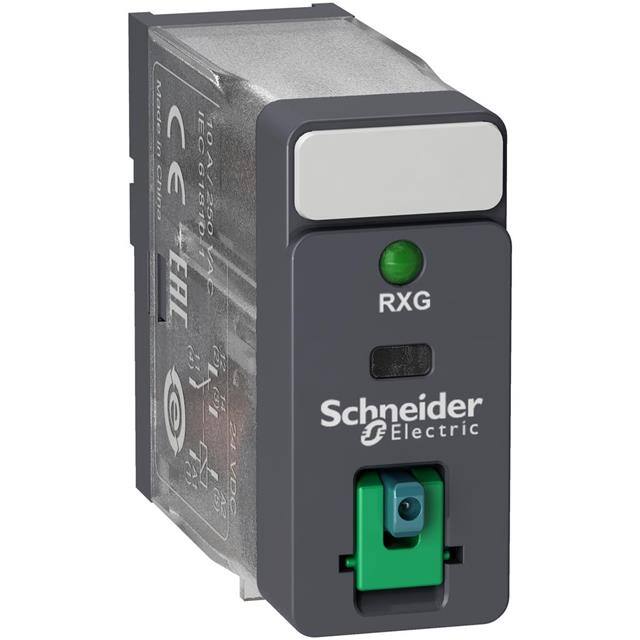

RXG12BD
Or copy the link below:
- Mfr.Part #
- RXG12BD
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, INTERFACE PLUG-IN RELAY
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Mounting Type :
- Socketable
- Dim :
- (W x H x D) 13 x 36.1 x 30 mm
- Length :
- 13mm
- Must Operate Voltage :
- -
- Contact Termination :
- Plug Pin
- Type of electric connection :
- Flat plug-in connection
- Must Release Voltage :
- 2.4 VDC
- Type :
- RXG12BD
- Number of Poles :
- 1
- Release Time :
- 20 ms
- Switching voltage (max.) :
- 30V DC,250V AC
- Contact Rating (Current) :
- 10 A
- Nominal current :
- 10
- RoHS :
- Details
- Operating Temperature :
- -40°C ~ 70°C
- Seal Rating :
- -
- Terminal Type :
- Plug In
- With detachable clamps :
- No
- Coil Termination :
- Plug Pin
- Contact Configuration :
- SPDT
- Coil Voltage :
- 24VDC
- Subcategory :
- Relays
- Brand :
- Schneider Electric
- Nominal voltage :
- 24V dc
- Min. temperature :
- -40°C
- Max. temperature :
- +70°C
- Coil Type :
- Non Latching
- Product Status :
- Active
- Manufacturer :
- Schneider Electric
- Connection :
- Pin terminal (flat)
- Contact Form :
- SPDT (1 Form C)
- Series :
- Harmony
- Switching Voltage :
- 250VAC, 30VDC - Max
- Voltage type for actuating :
- DC
- Operate Time :
- 20 ms
- Content :
- 1pc(s)
- Coil Insulation :
- -
- Weight :
- 20g
- Mounting Style :
- Socket
- Degree of protection (IP) :
- IP40
- Features :
- Lighted Indicator, Test Button
- Package :
- Box
- Coil Current :
- -
- Relay Type :
- GENERAL PURPOSE
- Depth :
- 30mm
- Termination Style :
- Plug In
- Contact Current Rating :
- 10 A
- Product Type :
- Industrial Relays
- Coil Resistance :
- 1100Ω
- Switching Current :
- 10A
- Height :
- 36.1mm
- Contact Material :
- Silver Tin Oxide Indium Oxide (AgSnOInO)
- Number of contacts as normally closed contact :
- 0
- Number of contacts as change-over contact :
- 1
- Rated control supply voltage at DC :
- 24 - 24
- Coil Power :
- 530mW
- Material of contact surface :
- Other
- Switching current (max.) :
- 10A
- Application :
- Interface
- Durability :
- 1000 0000 cycles
- Max. switching capacity :
- 2500VA
- Width :
- 13mm
- Material contact :
- Other
- IP Rating :
- IP40
- Number of contacts as normally open contact :
- 0
- Product :
- Industrial Relays
- Product Category :
- Industrial Relays
- Datasheets
- RXG12BD
