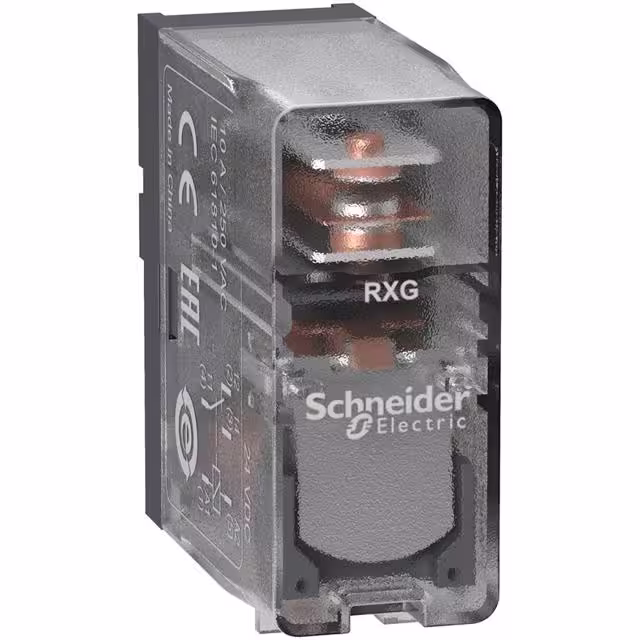

RXG15BD
Or copy the link below:
- Mfr.Part #
- RXG15BD
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, INTERFACE PLUG-IN RELAY
- Stock
- 11
- In Stock ：
- 11
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Type of electric connection :
- Flat plug-in connection
- Brand :
- Schneider Electric
- RoHS :
- Details
- Must Operate Voltage :
- 19.2 VDC
- Contact Current Rating :
- 10 A
- Features :
- -
- Release Time :
- 20 ms
- Nominal current :
- 10
- Mounting Style :
- Socket
- Subcategory :
- Relays
- Seal Rating :
- -
- Product Category :
- General Purpose Relays
- Type :
- 1 Pole
- Number of Poles :
- 1
- Material contact :
- Other
- Must Release Voltage :
- 2.4 VDC
- Package :
- Box
- Coil Voltage (DC) :
- 24 V
- Relay Type :
- GENERAL PURPOSE
- Coil Insulation :
- -
- Mounting Type :
- Socketable
- Coil Voltage :
- 24VDC
- Termination Style :
- Plug In
- Manufacturer :
- Schneider Electric
- Contact Resistance :
- 100 mΩ
- Width :
- 13
- Throw Configuration :
- SPDT
- Coil Type :
- Non Latching
- Contact Rating (Current) :
- 10 A
- Degree of protection (IP) :
- IP40
- Contact Termination :
- Plug In
- Voltage type for actuating :
- DC
- Number of contacts as change-over contact :
- 1
- Product :
- Power Relays
- Operate Time :
- 20 ms
- Coil Power :
- 530mW
- Switching Current :
- 10A
- Series :
- Harmony
- Contact Form :
- SPDT (1 Form C)
- Number of contacts as normally open contact :
- 0
- Coil Resistance :
- 1100Ω
- With detachable clamps :
- No
- Switching Voltage :
- 250VAC, 30VDC - Max
- Contact Configuration :
- SPDT
- Contact Material :
- Silver Tin Oxide Indium Oxide (AgSnOInO)
- Application :
- Interface
- Depth :
- 29
- Number of contacts as normally closed contact :
- 0
- Product Type :
- General Purpose Relays
- Operating Temperature :
- -40°C ~ 70°C
- Terminal Type :
- Plug In
- REACH SVHC :
- Unknown
- Rated control supply voltage at DC :
- 24 - 24
- Material of contact surface :
- Other
- Product Status :
- Active
- Length :
- 13mm
- Height :
- 28
- Datasheets
- RXG15BD
