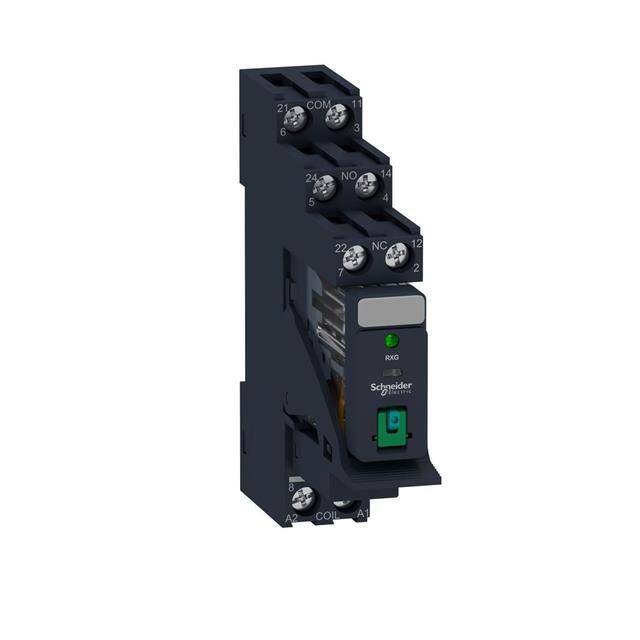

RXG22BDPV
Or copy the link below:
- Mfr.Part #
- RXG22BDPV
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, INTERFACE PLUG-IN RELAY
- Stock
- 120
- In Stock ：
- 120
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Coil Voltage :
- 24VDC
- Mounting Type :
- DIN Rail
- Product :
- Relays
- Contact Form :
- DPDT (2 Form C)
- Termination Style :
- Screw Terminal
- Operating Temperature :
- -40°C ~ 70°C
- Operate Time :
- 20 ms
- Coil Insulation :
- -
- Subcategory :
- Relays
- Seal Rating :
- -
- Nominal current :
- 5
- Product Category :
- Industrial Relays
- Release Time :
- 20 ms
- Contact Material :
- Silver Tin Oxide Indium Oxide (AgSnOInO)
- Relay Type :
- GENERAL PURPOSE
- Must Operate Voltage :
- 19.2 VDC
- Width :
- 15
- Type of electric connection :
- Plug-in connection
- Package :
- Box
- Material contact :
- Other
- Coil Resistance :
- 1.1kOhm
- Product Status :
- Active
- With detachable clamps :
- yes
- Height :
- 79
- Coil Type :
- Non Latching
- Switching Voltage :
- 250VAC - Max
- Number of contacts as normally open contact :
- 0
- Degree of protection (IP) :
- IP20
- Number of contacts as change-over contact :
- 2
- Number of contacts as normally closed contact :
- 0
- Manufacturer :
- Schneider Electric
- Features :
- Lighted Indicator, Test Button
- Mounting Style :
- Plug In
- Series :
- Harmony
- Contact Rating (Current) :
- 5 A
- IP Rating :
- IP20
- Must Release Voltage :
- 2.4 VDC
- Brand :
- Schneider Electric
- Material of contact surface :
- Other
- Voltage type for actuating :
- DC
- Length :
- 79.6 mm
- Type :
- Interface Relay
- Contact Configuration :
- DPDT
- Product Type :
- Industrial Relays
- Depth :
- 72
- RoHS :
- Details
- Contact Current :
- 5A
- Datasheets
- RXG22BDPV
RXG22BDPV datasheet pdf and Power Relays, Over 2 Amps product details from Schneider Electric stock available at
