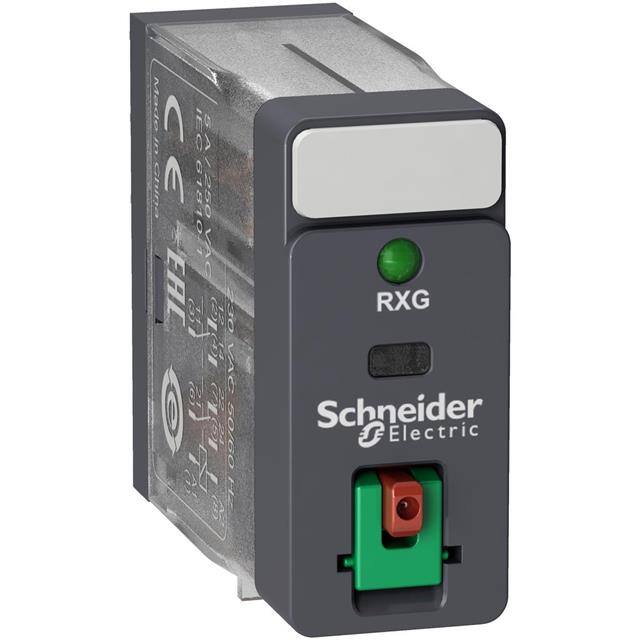

RXG22P7

Manufacturer :

Schneider Electric

Product Category :

Power Relays, Over 2 Amps

Operate Time :

20 ms

Coil Voltage :

230VAC

Coil Power :

820mW

Product Status :

Active

Mounting Type :

Socketable

Switching current (max.) :

5A

Coil Resistance :

1440Ω

Package :

Box

Type :

RXG22P7

Seal Rating :

-

Contact Form :

DPDT (2 Form C)

Max. temperature :

+70°C

Number of contacts as normally closed contact :

0

Rated control supply voltage at AC 60 Hz :

230 - 230

Manufacturer :

Schneider Electric

Connection :

Pin terminal (flat)

Subcategory :

Relays

Height :

36.1mm

Material of contact surface :

Other

Switching Current :

5A

Content :

1pc(s)

Must Release Voltage :

69 VAC

Switching Voltage :

250VAC, 30VDC - Max

Contact Configuration :

DPDT

Release Time :

20 ms

Product Type :

General Purpose Relays

With detachable clamps :

No

RoHS :

Details

Relay Type :

GENERAL PURPOSE

Number of contacts as normally open contact :

0

Width :

13mm

Features :

Lighted Indicator, Test Button

Operating Temperature :

-40°C ~ 70°C

Termination Style :

Plug In

Max. switching capacity :

1250VA

Switching voltage (max.) :

30V DC,250V AC

Contact Current :

5A

Brand :

Schneider Electric

Durability :

1000 0000 cycles

Coil Insulation :

-

Degree of protection (IP) :

IP40

Voltage type for actuating :

AC

Material contact :

Other

Type of electric connection :

Flat plug-in connection

Dim :

(W x H x D) 13 x 36.1 x 30 mm

Nominal voltage :

230V ac

Application :

Interface

Rated control supply voltage at AC 50 Hz :

230 - 230

Contact Rating (Current) :

5 A

Nominal current :

5

Must Operate Voltage :

184 VAC

Depth :

30mm

Coil Type :

Non Latching

Min. temperature :

-40°C

Number of contacts as change-over contact :

2

Product Category :

General Purpose Relays

Contact Material :

Silver Tin Oxide Indium Oxide (AgSnOInO)

Terminal Type :

Plug In

Number of Poles :

2

Weight :

20g

Series :

Harmony

Length :

13mm
