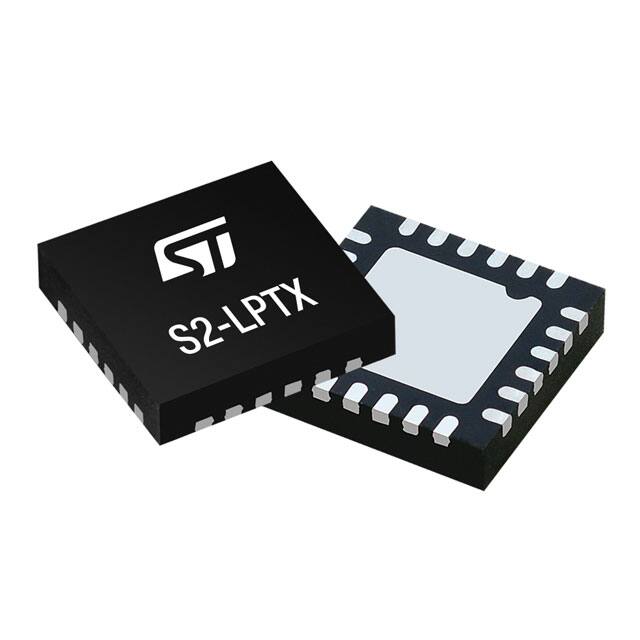

S2-LPTXQTR
Or copy the link below:
- Mfr.Part #
- S2-LPTXQTR
- Manufacturer
- STMicroelectronics
- Package / Case
- 24-VFQFN Exposed Pad
- Datasheet
- Download
- Description
- HIGH PERFORMANCE ULTRA-LOW POWER
- Stock
- 26,889
- In Stock ：
- 26,889
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- STMicroelectronics
- Product Category :
- RF Transceiver ICs
- Power - Output :
- 16dBm
- Current - Transmitting :
- 11.5mA~32mA
- Voltage - Supply :
- 1.8V~3.6V
- GPIO :
- 4
- Protocol :
- SIGFOX™, Wireless M-Bus
- Modulation :
- 2-FSK, 4-FSK, 2GFSK, 4GFSK, ASK, OOK
- Serial Interfaces :
- SPI, UART
- Type :
- TxRx + MCU
- RF Family/Standard :
- 802.15.4, General ISM < 1GHz
- Mounting Type :
- Surface Mount
- RoHS Status :
- ROHS3 Compliant
- Frequency :
- 413MHz~479MHz 826MHz~958MHz
- Operating Temperature :
- -40°C~105°C TA
- Data Rate (Max) :
- 500Kbps
- Package / Case :
- 24-VFQFN Exposed Pad
- Datasheets
- S2-LPTXQTR
TxRx + MCU 413MHz~479MHz 826MHz~958MHz 1.8V~3.6V SPI, UART 500kbps 11.5mA~32mA - Transmitting 2-FSK, 4-FSK, 2GFSK, 4GFSK, ASK, OOK 4 24-VFQFN Exposed Pad
S2-LPTXQTR Overview
The 24-VFQFN Exposed Pad package conserves RF transceiver IC's board space. To mount, RF transceiver uses Surface Mount.As a result, it appears as a TxRx + MCU with transceiver RF's a high efficiency and a high degree of reliability.On the basis of the frequency 413MHz~479MHz 826MHz~958MHz, RF transceiver operates .
S2-LPTXQTR Features
24-VFQFN Exposed Pad package
Surface Mount for mounting
TxRx + MCU
S2-LPTXQTR Applications
There are a lot of STMicroelectronics
S2-LPTXQTR RF Transceiver ICs applications.
- Industrial Controls
- Chemical Sensors
- Security Systems
- M2M Communication
- Remote Device Management
- Low-power IoT applications
- LoT applications
- Power Amplifier (PA)
- Low Noise Amplifier (LNA)
- Transmit
