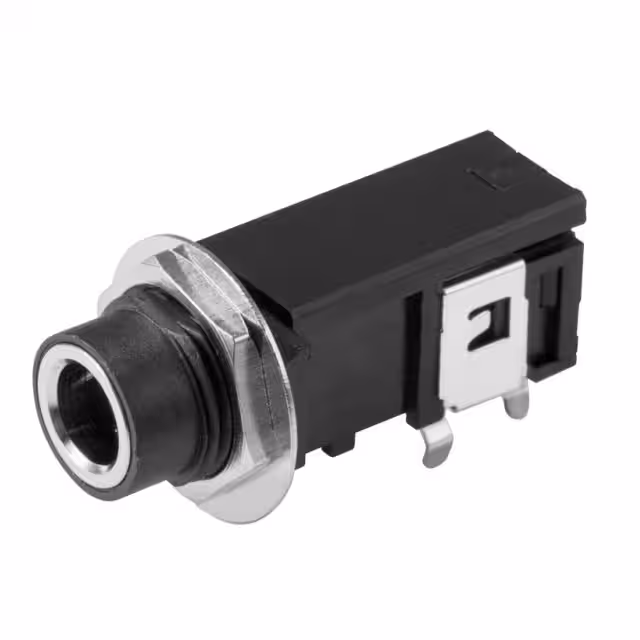

SJ-63062B

Manufacturer :

CUI Devices

Product Category :

Audio Connectors

Product Height (mm) :

12.5(mm)

Operating Temp Range :

-25C to 70C

Operating Temperature Min Deg. C :

-25C

Voltage Rating :

12 VDC

Actual Diameter :

0.252 (6.40mm)

Mounting Style :

Through Hole

Operating Temperature :

-25°C ~ 70°C

Body Orientation :

RIGHT ANGLE

Product Diameter (mm) :

Not Required(mm)

Includes :

-

Type :

AUDIO JACK

Standard :

6.3 mm

Product Category :

Phone Connectors

Contact Material - Plating :

Silver

Number of Ports :

1(Port)

Insulation Color :

-

Termination Method :

Solder

Product Depth (mm) :

34(mm)

Termination :

Solder

Body Color :

Black

Features :

Cover, Mounting Hardware, Thread Lock

Mounting Type :

Through Hole, Right Angle

Number of Terminals :

3

Harmonized Code :

39203000

Mating Length/Depth :

1.220 (31.00mm)

Base Product Number :

SJ-63

Current Rating (Max) :

1(A)

Series :

SJ

Orientation :

RIGHT ANGLE

Thread Size :

M12

Number of Positions :

2 Position

ECCN :

EAR99

Operating Temperature Max Deg. C :

70C

Housing Material :

Polybutylene Terephthalate (PBT)

Body Material :

-

Itar Registered :

Unavailable

Color :

Black

Voltage - Rated :

12VDC

Mating Cycles :

5000 Cycles

Connector Type :

Phone Jack

Termination Style :

Solder Pin

Cable Opening :

-

Product Status :

Active

Internal Switch(s) :

Single Switch

Gender :

F

Current Rating (Amps) :

1 A

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Subcategory :

Audio and Video Connectors

Switch Configuration :

Switched

Manufacturer :

CUI Devices

Signal Lines :

Mono

Accessory Type :

-

Product Type :

Phone Connectors

Brand :

CUI Devices

Contact Plating :

Silver

Contact Material :

Phosphor Bronze

Panel Hole Size :

-

Number of Contacts :

2(POS)

Package :

Bag

Shielding :

Unshielded

Product Length (mm) :

14(mm)

Packaging :

Bulk

Industry Recognized Mating Diameter :

6.35mm (0.250, 1/4) - Headphone
