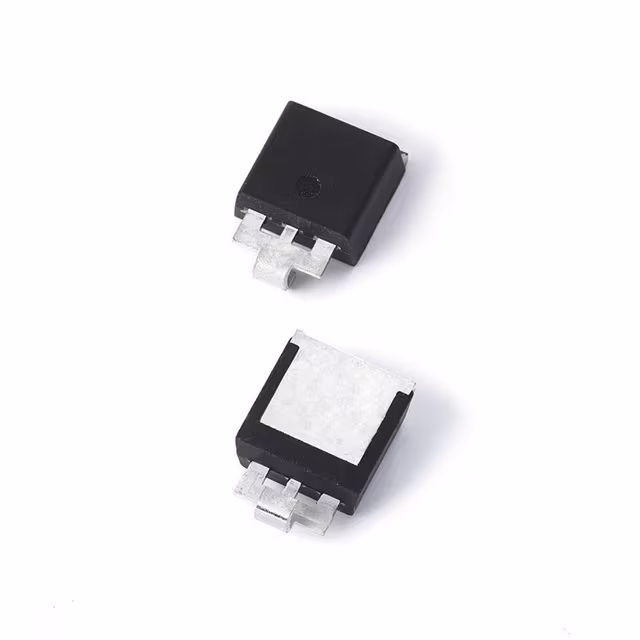

SLD6S14A

Manufacturer :

Littelfuse

Product Category :

Package / Case :

Nonstandard SMD

Product Status :

Active

Brand :

Littelfuse

Vf - Forward Voltage :

1.8 V

Breakdown Voltage :

15.6 V

Qualification :

AEC-Q101

Power Line Protection :

No

Type :

Zener

Operating Temperature :

-55°C ~ 150°C (TJ)

Subcategory :

TVS Diodes / ESD Suppression Diodes

Product Type :

TVS Diodes

Clamping Voltage :

23.2 V

Product Category :

ESD Suppressors / TVS Diodes

Mounting Type :

Surface Mount

Capacitance @ Frequency :

-

RoHS :

Details

Power - Peak Pulse :

1800W (1.8kW)

Voltage - Clamping (Max) @ Ipp :

23.2V

Termination Style :

Axial

Manufacturer :

Littelfuse

Polarity :

Unidirectional

Number of Channels :

1 Channel

Package :

Tape and Reel (TR)

Series :

Automotive, AEC-Q101, SLD6S

Voltage - Breakdown (Min) :

15.6V

Current - Peak Pulse (10/1000μs) :

198A

Applications :

Automotive

Voltage - Reverse Standoff (Typ) :

14V

Working Voltage :

14 V

Unidirectional Channels :

1

Supplier Device Package :

SMTO-263

Maximum Operating Temperature :

+ 150 C

Packaging :

Cut Tape

Minimum Operating Temperature :

- 55 C
