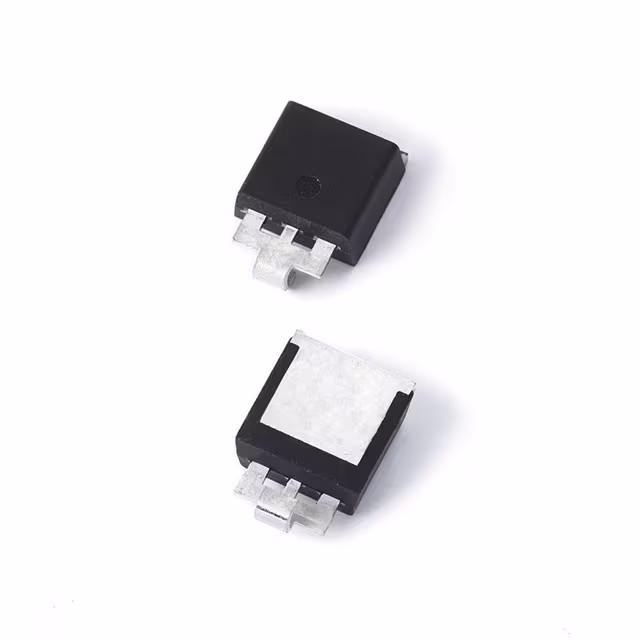

SLD6S40A

Manufacturer :

Littelfuse

Product Category :

Vf - Forward Voltage :

1.8 V

Termination Style :

Axial

Voltage - Breakdown (Min) :

44.4V

Unidirectional Channels :

1

Working Voltage :

40 V

Power - Peak Pulse :

1800W (1.8kW)

Subcategory :

TVS Diodes / ESD Suppression Diodes

Product Status :

Active

Voltage - Clamping (Max) @ Ipp :

64.5V

Breakdown Voltage :

44.4 V

Package / Case :

Nonstandard SMD

Applications :

Automotive

Minimum Operating Temperature :

- 55 C

Clamping Voltage :

64.5 V

Product Category :

ESD Suppressors / TVS Diodes

Supplier Device Package :

SMTO-263

Brand :

Littelfuse

Number of Channels :

1 Channel

Package :

Tape and Reel (TR)

Capacitance @ Frequency :

-

Power Line Protection :

No

RoHS :

Details

Current - Peak Pulse (10/1000μs) :

71A

Series :

Automotive, AEC-Q101, SLD6S

Manufacturer :

Littelfuse

Packaging :

Cut Tape

Operating Temperature :

-55°C ~ 150°C (TJ)

Polarity :

Unidirectional

Maximum Operating Temperature :

+ 150 C

Voltage - Reverse Standoff (Typ) :

40V

Type :

Zener

Mounting Type :

Surface Mount

Qualification :

AEC-Q101

Product Type :

TVS Diodes
